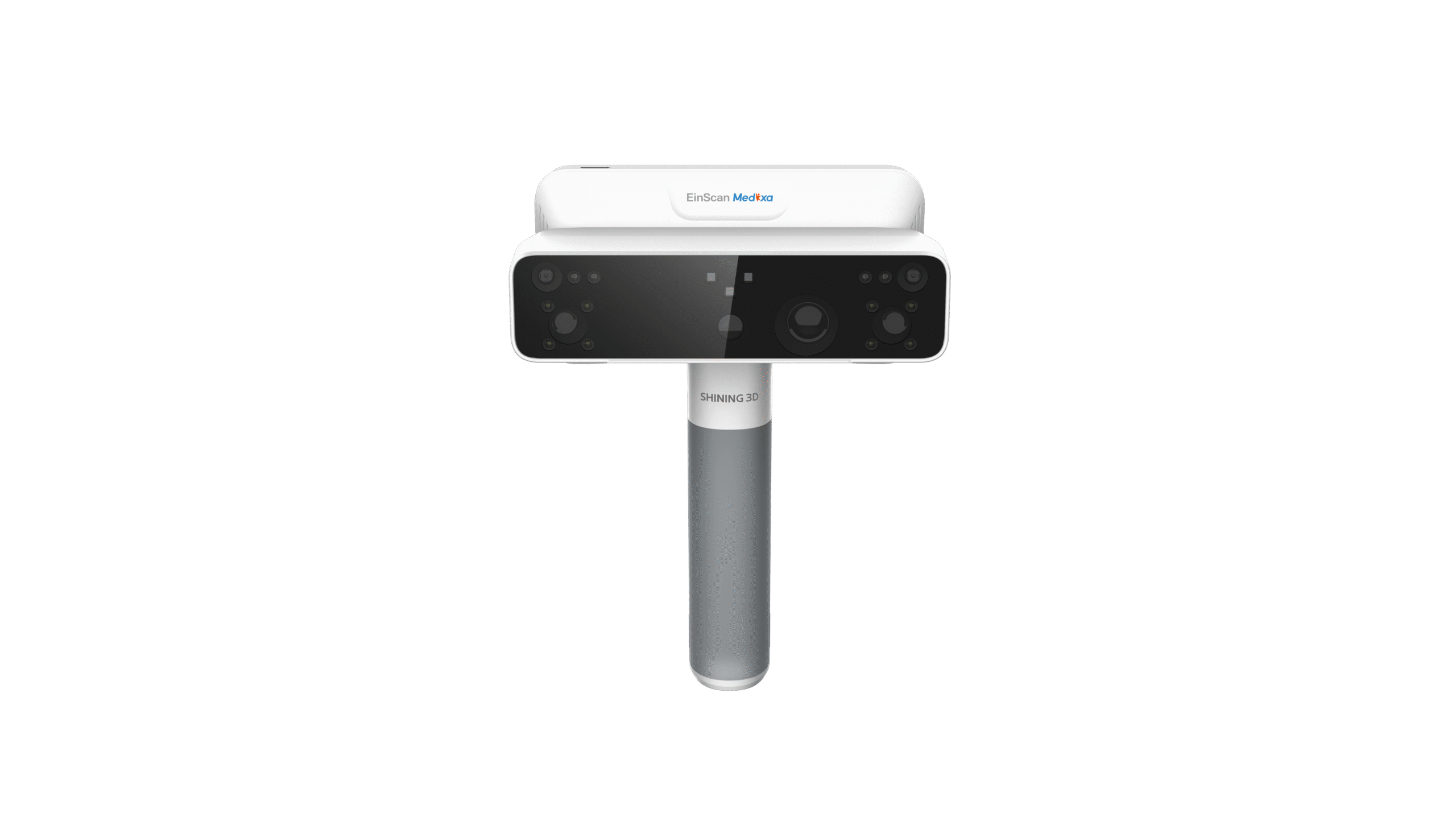

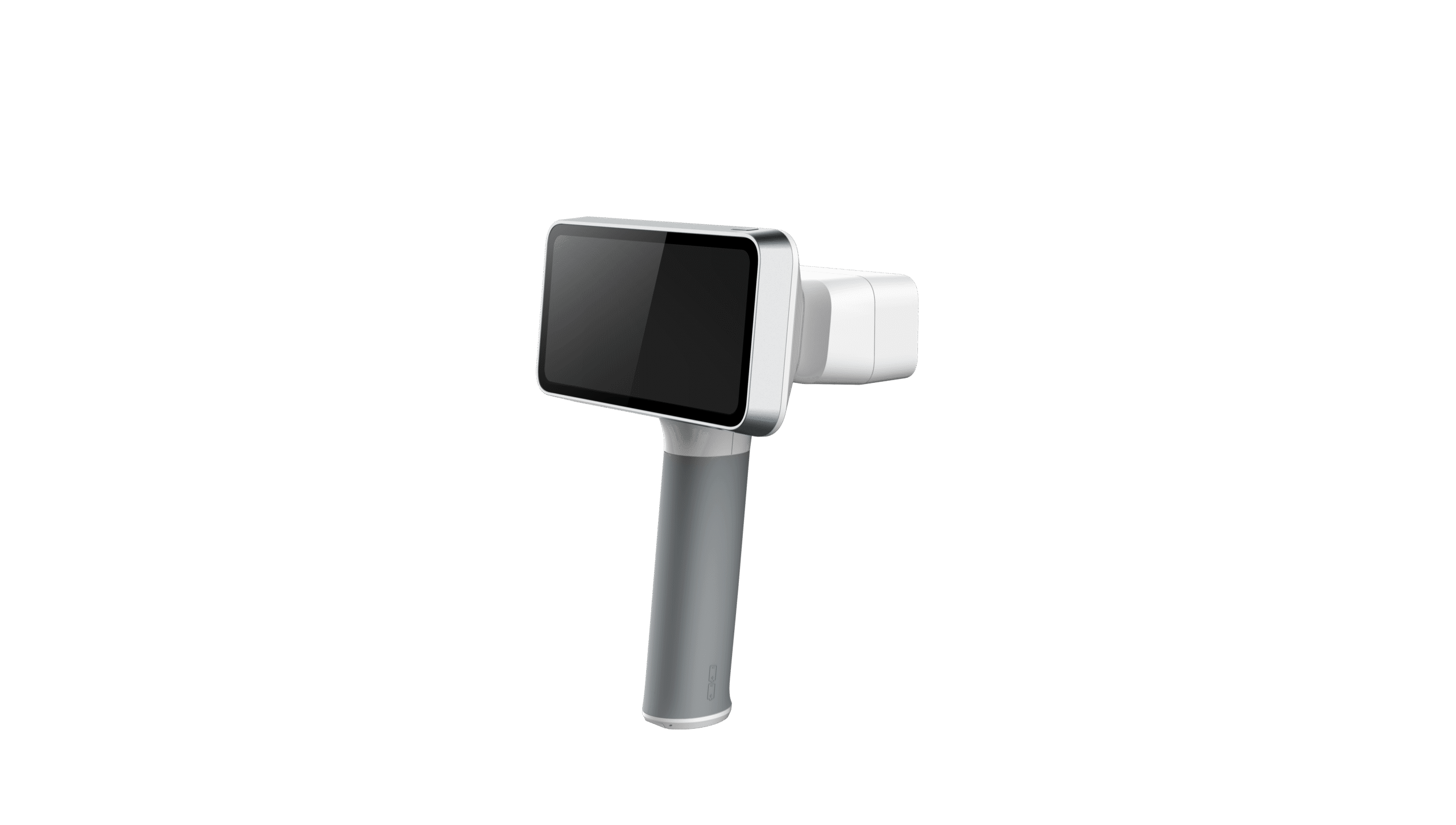

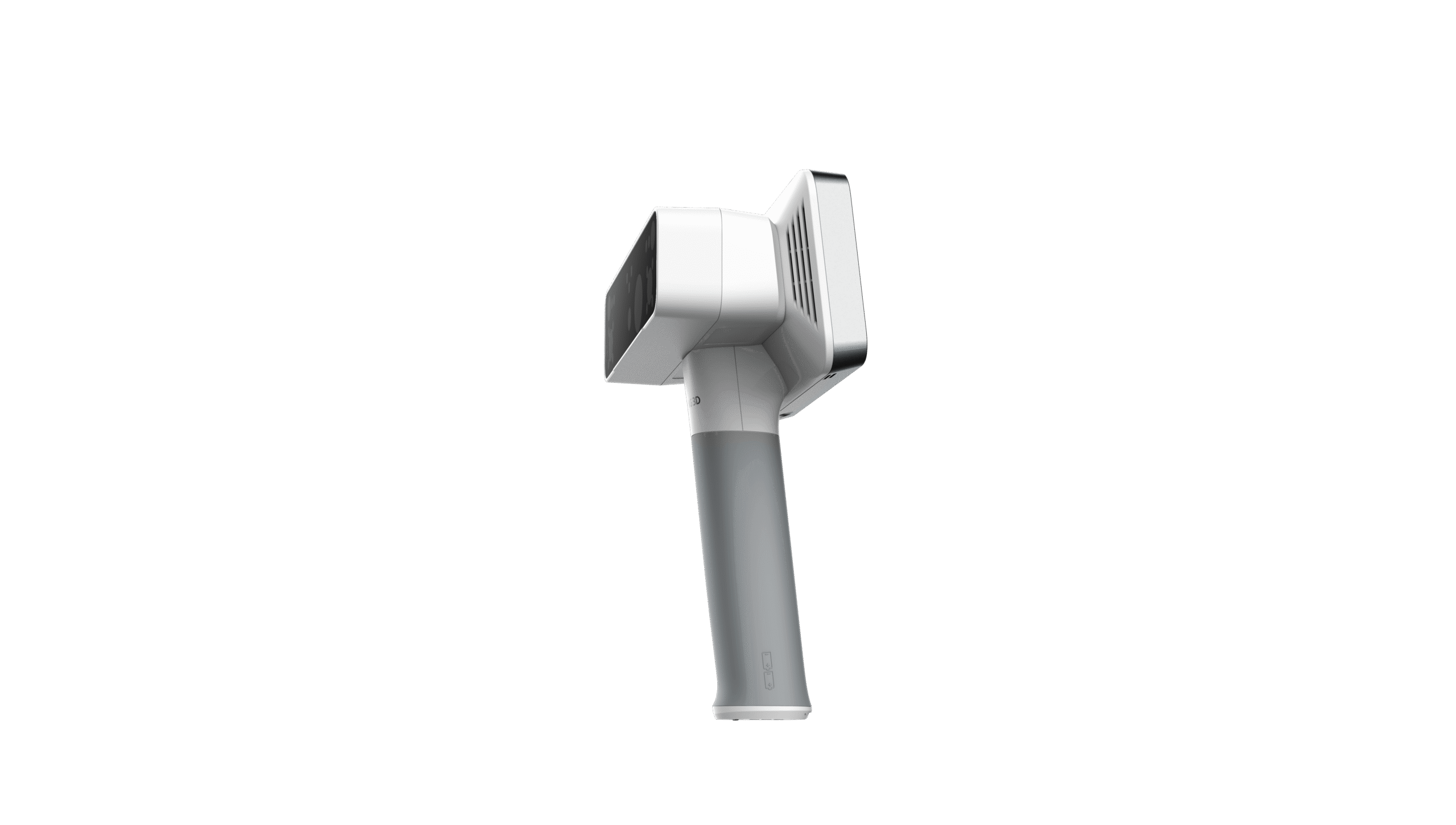

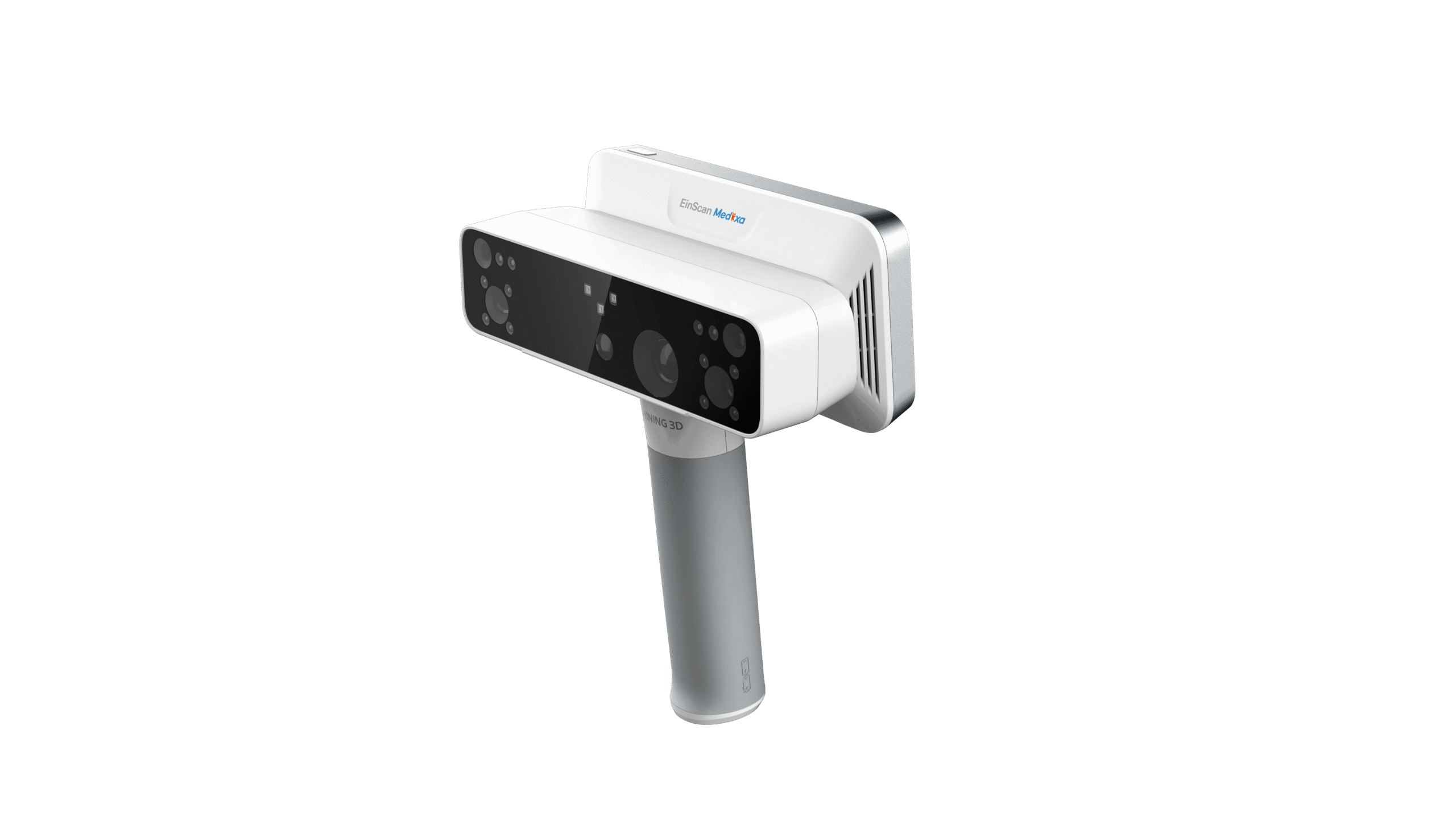

EinScan Medixa – Medical 3D Scanner for Orthotics & Prosthetics
The EinScan Medixa is a professional wireless all-in-one medical 3D scanner designed specifically for orthotics and prosthetics workflows. Combining infrared and white light scanning with standalone operation, it enables fast, contact-free patient scanning for digital healthcare, rehabilitation, and custom medical device production.
Key Features
- Designed for Orthotics and Prosthetics Workflows
- Wireless Standalone 3D Scanning
- Contact-Free Patient Scanning
- Movement Compensation Technology
- Integrated Medical Workflow Presets
- 5MP Texture Camera
- Portable All-In-One Medical Scanning Solution
Technical Specifications
| Scanning Technology White Light + IR VCSEL |
Application Orthotics & Prosthetics |
| Accuracy RMS < 0.3 mm |
Point Distance 0.2 – 3 mm |
| Field of View (White Light) 475 × 360 mm |
Field of View (IR VCSEL) 1090 × 1260 mm |
| Texture Camera 5 MP |
Alignment Modes Feature / Texture / Hybrid / Markers / Global Markers |
| Output Formats STL, OBJ, PLY |
Operation Standalone Wireless |
| Connection Wi-Fi / USB-C |
Battery 2 × 5500 mAh Replaceable Batteries |
| Runtime Up To 3 Hours |
Movement Compensation Supported |
| Clinical Presets Face, Cranial, Torso, Upper Limb, Lower Limb, Feet, Socket, Seating, Foam Box |
Workflow Digital Orthotics & Prosthetics |
Use Cases
- Orthotics and Prosthetics Workflows
- Cranial Helmet Design
- Custom Socket and Limb Capture
- Digital Patient Documentation
What’s In The Box
- 1 × EinScan Medixa Scanner
- 2 × Replaceable Batteries
- Charging Accessories
- Calibration Accessories
- Documentation
