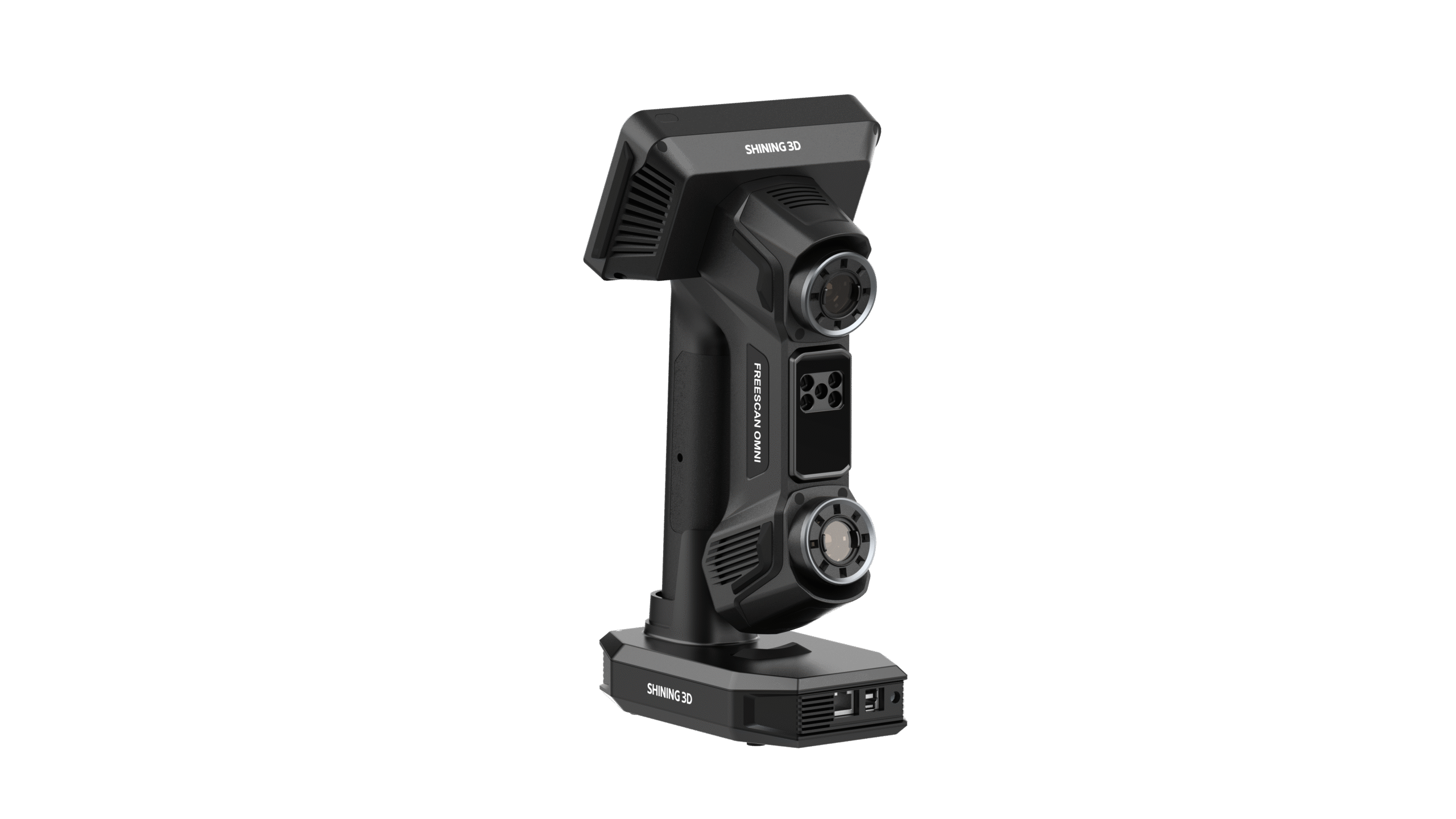

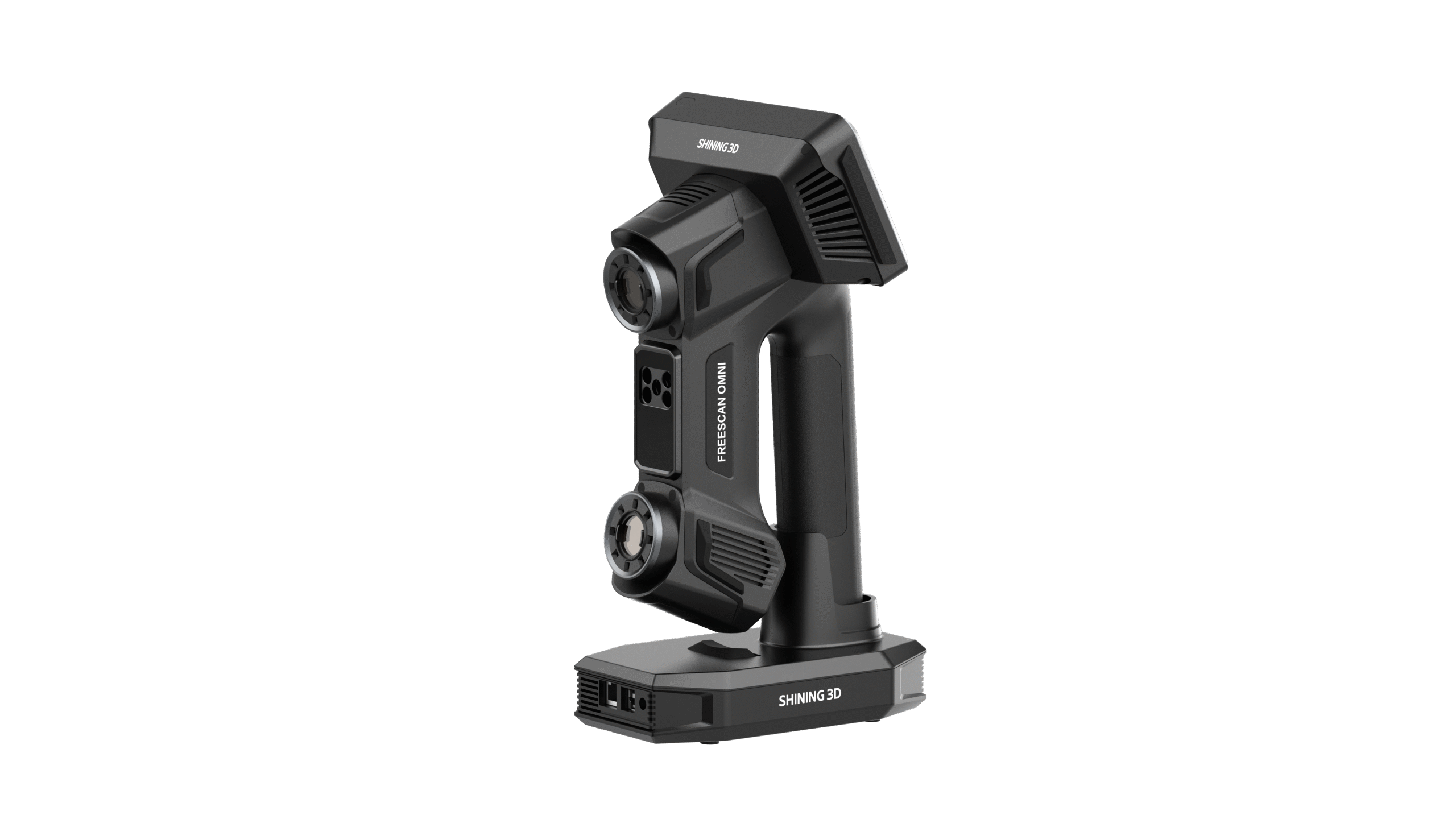

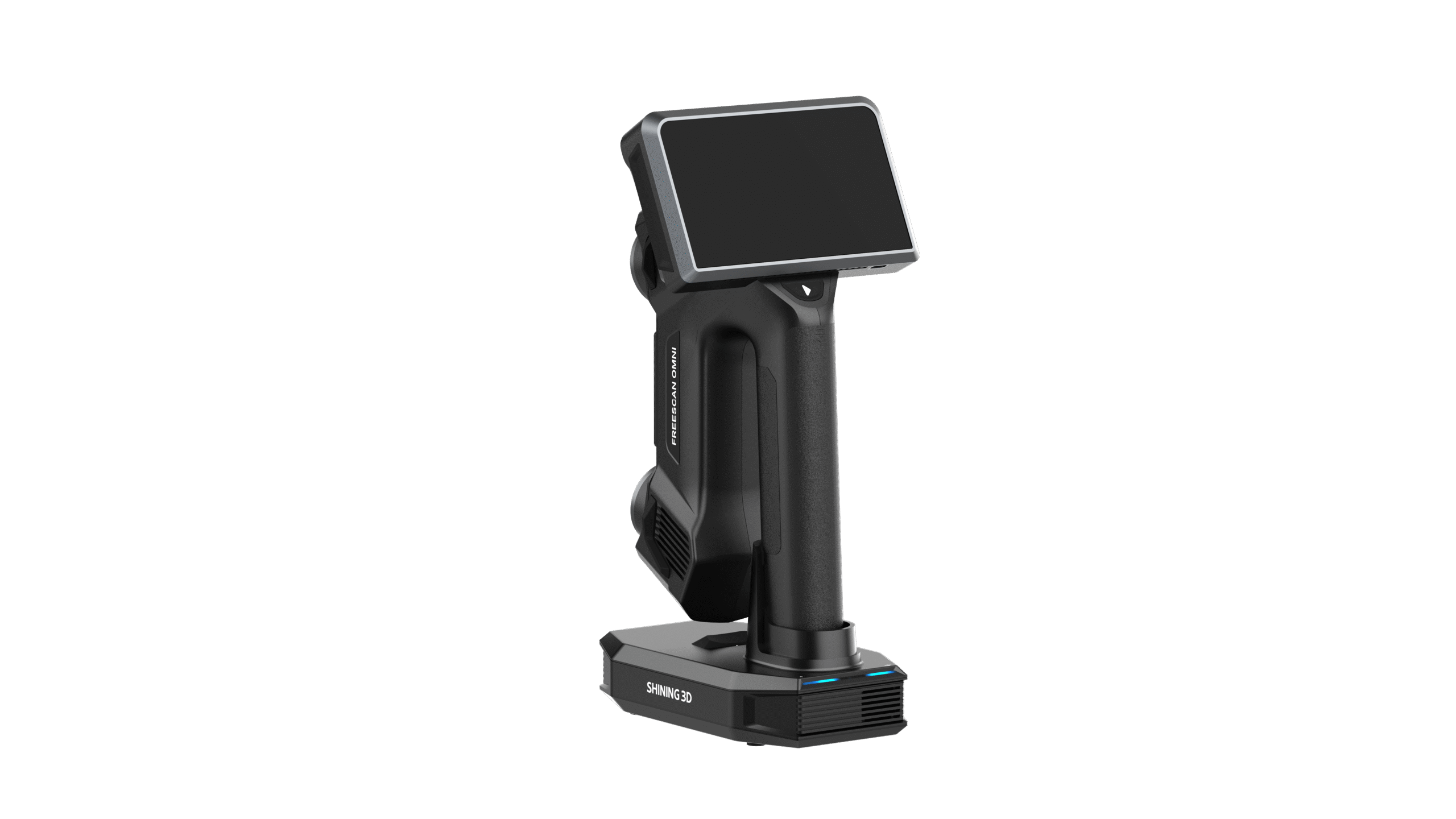

FreeScan OMNI – Advanced All-In-One Metrology Scanner
The FreeScan OMNI is a professional all-in-one metrology-grade handheld 3D scanner combining blue laser and infrared VCSEL technologies for industrial inspection, reverse engineering, and manufacturing workflows. Designed for high-speed geometry capture with industrial-grade accuracy, it enables flexible scanning across detailed, medium, and larger industrial components.
Key Features
- Hybrid Blue Laser and Infrared VCSEL Scanning
- Advanced All-In-One Metrology Workflow
- Metrology-Grade Industrial Accuracy
- High-Speed Geometry Capture
- Portable Handheld Industrial Design
- Designed for Reverse Engineering and Inspection
- Optimised for Manufacturing and Quality Control
Technical Specifications
| Scanning Technology Blue Laser + Infrared VCSEL |
Application Industrial Inspection and Reverse Engineering |
| Laser Lines 27 Blue Laser Lines |
Infrared Mode VCSEL Infrared Scanning |
| Accuracy Up To 0.02 mm |
Volumetric Accuracy 0.02 + 0.03 mm/m |
| Scan Speed Up To 7,800,000 Points/s |
Resolution 0.01 – 3 mm |
| Working Distance 300 mm |
Field of View 650 × 580 mm |
| Minimum Scan Volume 5 × 5 × 5 mm |
Alignment Modes Markers / Feature Alignment |
| Weight 620 g |
Connection USB 3.0 |
| Output Formats STL, OBJ, PLY, ASC |
Laser Class Class II (Eye-Safe) |
Use Cases
- Industrial Inspection and Quality Control
- Reverse Engineering Workflows
- Automotive and Mechanical Part Scanning
- Manufacturing and Product Verification
What’s In The Box
- 1 × FreeScan OMNI Scanner
- Calibration Accessories
- Connection Cables
- Marker Set
- Documentation
