Description

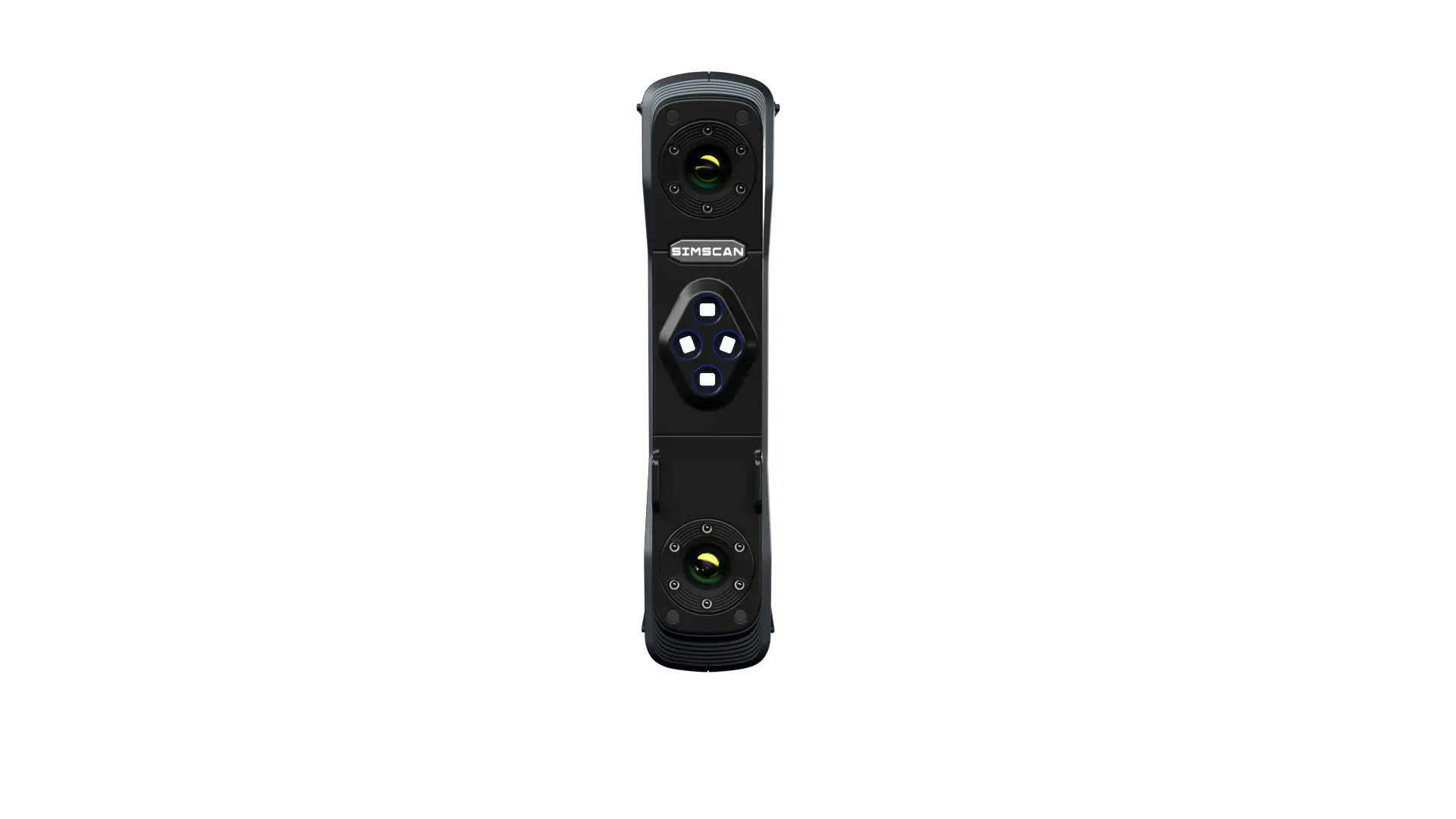

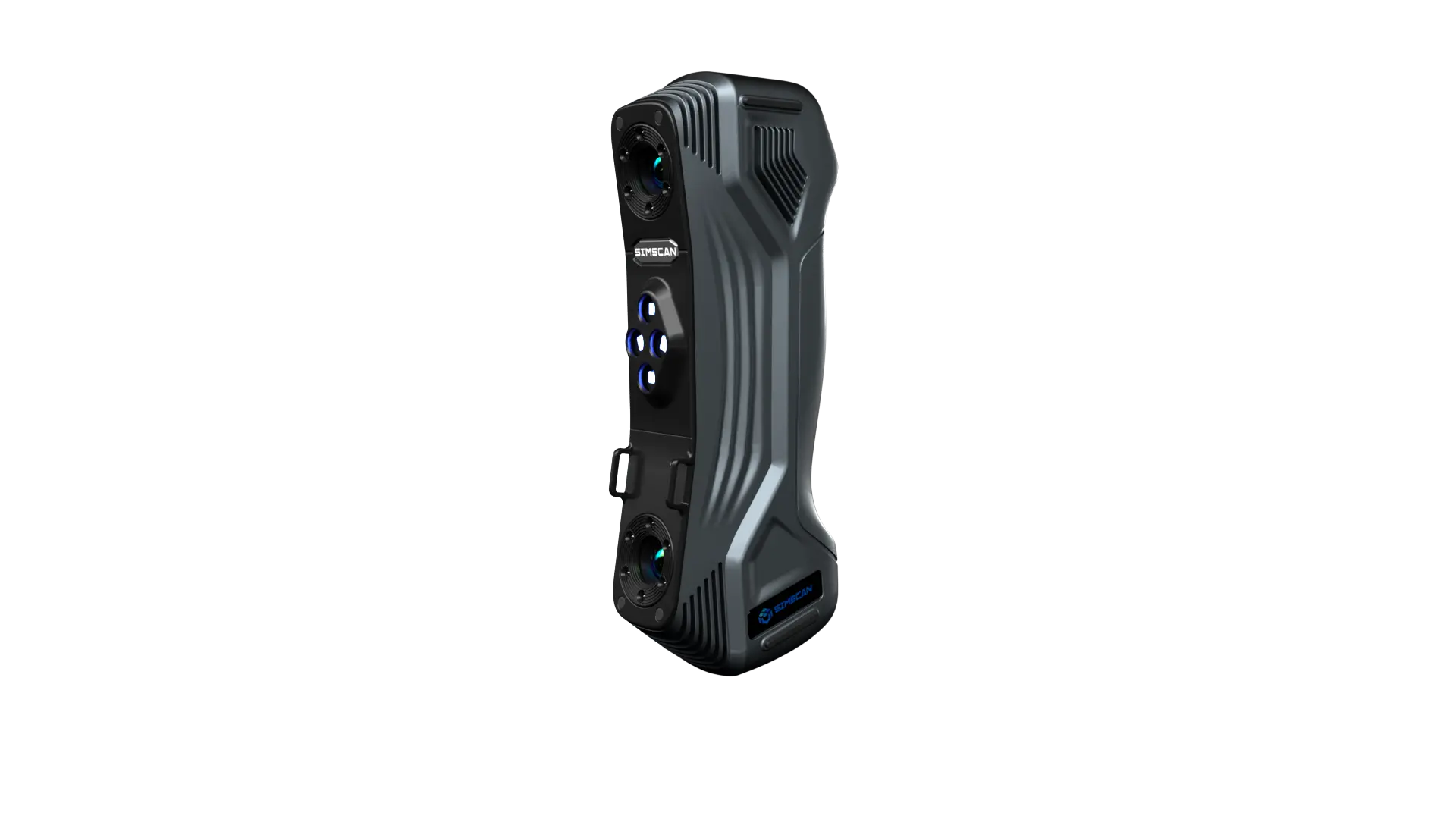

Simscan 22 – Compact Handheld Blue Laser 3D Scanner
The Simscan 22 is a compact handheld 3D laser scanner designed for high-precision industrial scanning, reverse engineering, inspection, and quality control workflows. Its small, lightweight design makes it suitable for scanning confined areas, complex surfaces, and on-site industrial components.
Key Features
- Compact Handheld 3D Laser Scanner
- 7 Blue Laser Crosses for Ultra-Fast Scanning
- 7 Blue Parallel Laser Lines for Hyperfine Scanning
- 1 Extra Blue Laser Line for Deep Hole Scanning
- Metrology-Grade Accuracy Up To 0.020 mm
- Designed for Narrow Spaces and Complex Industrial Components
- Eye-Safe Class II Laser
Technical Specifications
| Product Type Handheld 3D Laser Scanner |
Scanner Model Simscan 22 |
| Ultra-Fast Scanning 7 Blue Laser Crosses |
Hyperfine Scanning 7 Blue Parallel Laser Lines |
| Deep Hole Scanning 1 Extra Blue Laser Line |
Accuracy Up To 0.020 mm |
| Scanning Rate Up To 1,250,000 Measurements/s |
Scanning Area Up To 650 × 550 mm |
| Resolution Up To 0.020 mm |
Standard Volume Accuracy 0.015 mm + 0.035 mm/m |
| Volume Accuracy With MSCAN-L15 0.015 mm + 0.012 mm/m |
Laser Class Class II Eye-Safe |
| Stand-Off Distance 300 mm |
Depth Of Field 550 mm |
| Interface USB 3.0 |
Application Industrial Inspection / Reverse Engineering |
Use Cases
- Industrial inspection and quality control
- Reverse engineering mechanical components
- Scanning confined spaces and complex geometry
- On-site industrial 3D scanning workflows
What’s In The Box
- 1 × Simscan 22 3D Scanner
- Calibration Accessories
- Connection Accessories
- Documentation
