Description

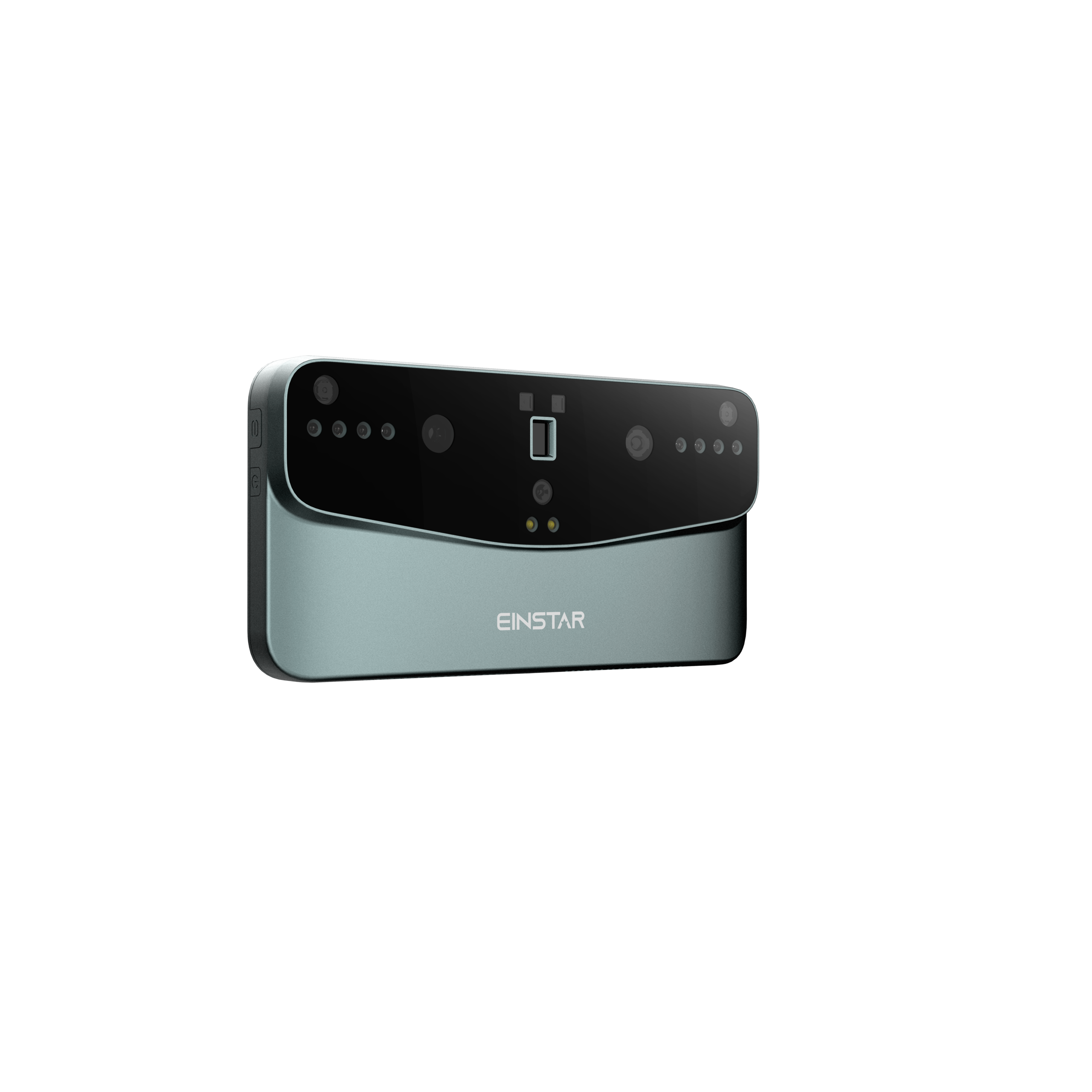

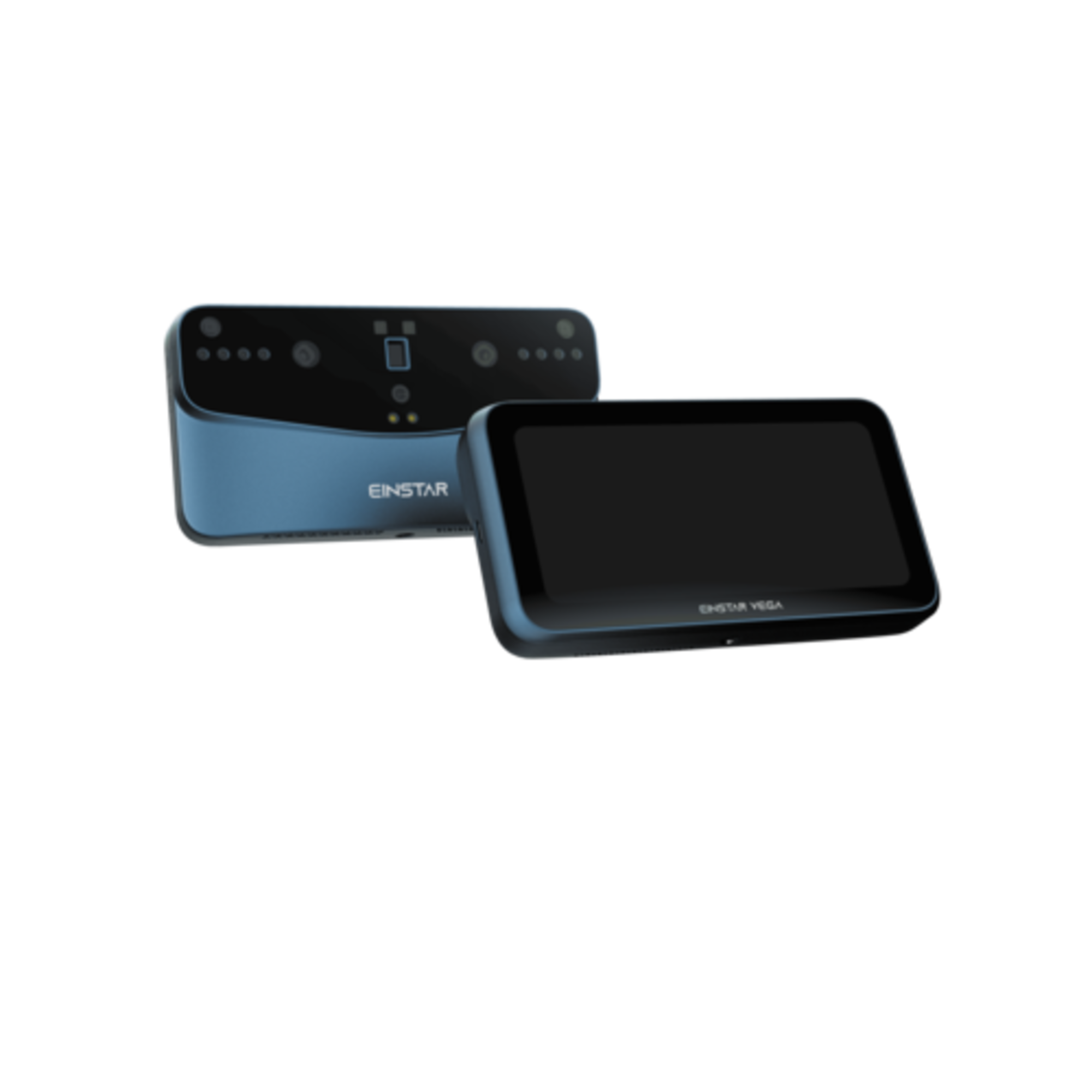

EINSTAR Vega – Wireless All-In-One 3D Scanner
The EINSTAR Vega is a standalone wireless all-in-one 3D scanner combining hybrid infrared scanning technologies with built-in computing and high-resolution texture capture. Designed for industrial inspection, reverse engineering, manufacturing, and digital capture workflows, it enables portable professional scanning without requiring a tethered PC setup.
Key Features
- Standalone Wireless 3D Scanning Workflow
- Built-In Processing for PC-Free Operation
- Dual Scan Modes – HD and Fast Scanning
- 48MP RGB Texture Capture
- 6.4-Inch 2K AMOLED Touchscreen
- Designed for Reverse Engineering and Inspection
- Portable All-In-One Industrial Design
Technical Specifications
| Scanning Technology (HD Mode) Infrared MEMS |
Scanning Technology (Fast Mode) Infrared VCSEL |
| Point Distance (HD) 0.05 – 3 mm |
Point Distance (Fast) 0.5 – 10 mm |
| Working Distance (HD) 100 – 350 mm |
Working Distance (Fast) 270 – 1500 mm |
| Frame Rate (HD) Up To 15 fps |
Frame Rate (Fast) Up To 20 fps |
| IR Camera Resolution (HD) 2 MP |
IR Camera Resolution (Fast) 1.3 MP |
| Color Camera 48 MP RGB |
Alignment Modes Feature / Texture / Markers / Hybrid |
| Output Formats PLY, STL, OBJ, ASC |
IMU 6 DoF |
| Processor 8-Core 2.4GHz |
RAM 32GB LPDDR4 |
| Storage 512GB SSD + 32GB eMMC |

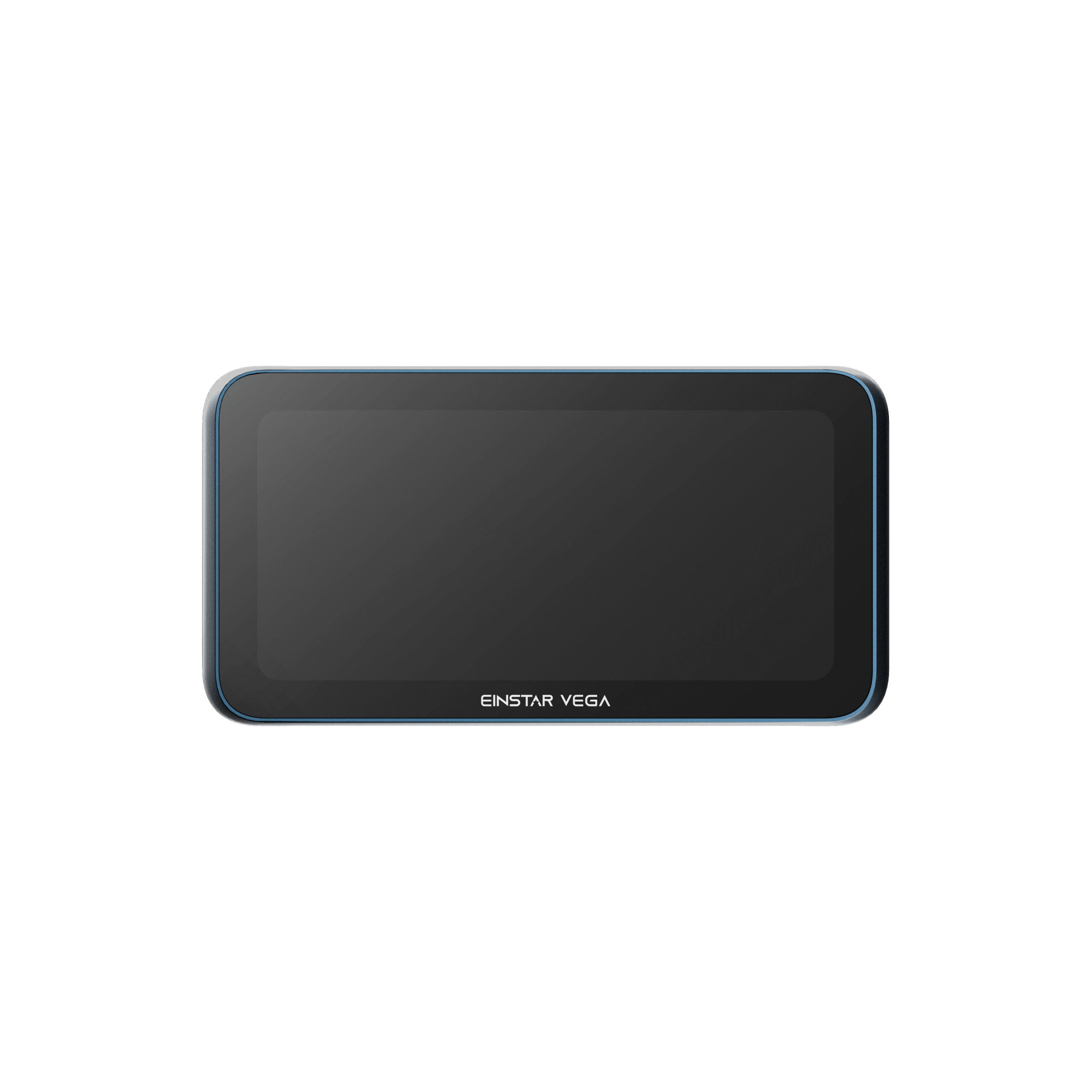

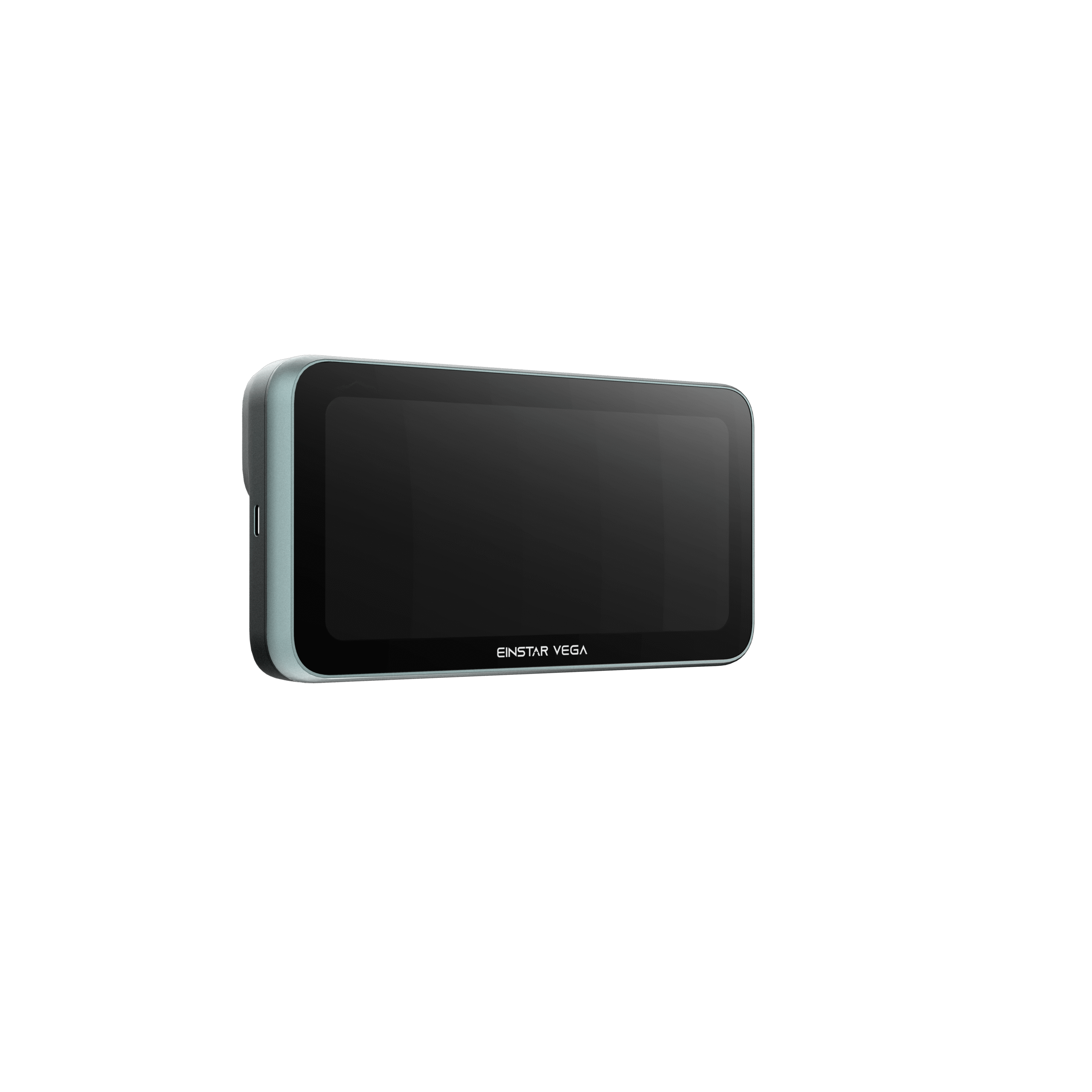

Display 6.4-Inch 2K AMOLED Touchscreen |
| Wireless & I/O Wi-Fi 6, USB-C, Screen Casting |
Battery 5000 mAh |
| Power Adapter 65W PD / PPS Fast Charging |
Supplemental Light 10 LEDs |
| Weight 535 g |
Dimensions 180 × 95 × 26.5 mm |
| Operating Temperature -10°C to 40°C |
Protection Grade IP50 |
| Supported OS Windows 10/11 (64-Bit), macOS 11.0+ |
Available Colors Champagne Gold, Ocean Blue, Titanium Gray, Silver Blue |
Use Cases
- Reverse Engineering and Product Development
- Industrial Inspection and Quality Control
- Automotive and Mechanical Part Scanning
- Portable Manufacturing and 3D Printing Workflows
What’s In The Box
- 1 × EINSTAR Vega Scanner
- 1 × Carrying Case
- 1 × Calibration Board
- 1 × Holder
- 1 × Power Adapter
- 1 × USB-C Cable
- 1 × Wrist Strap Ring Screw
- 1 × Marker Set
- Documentation
