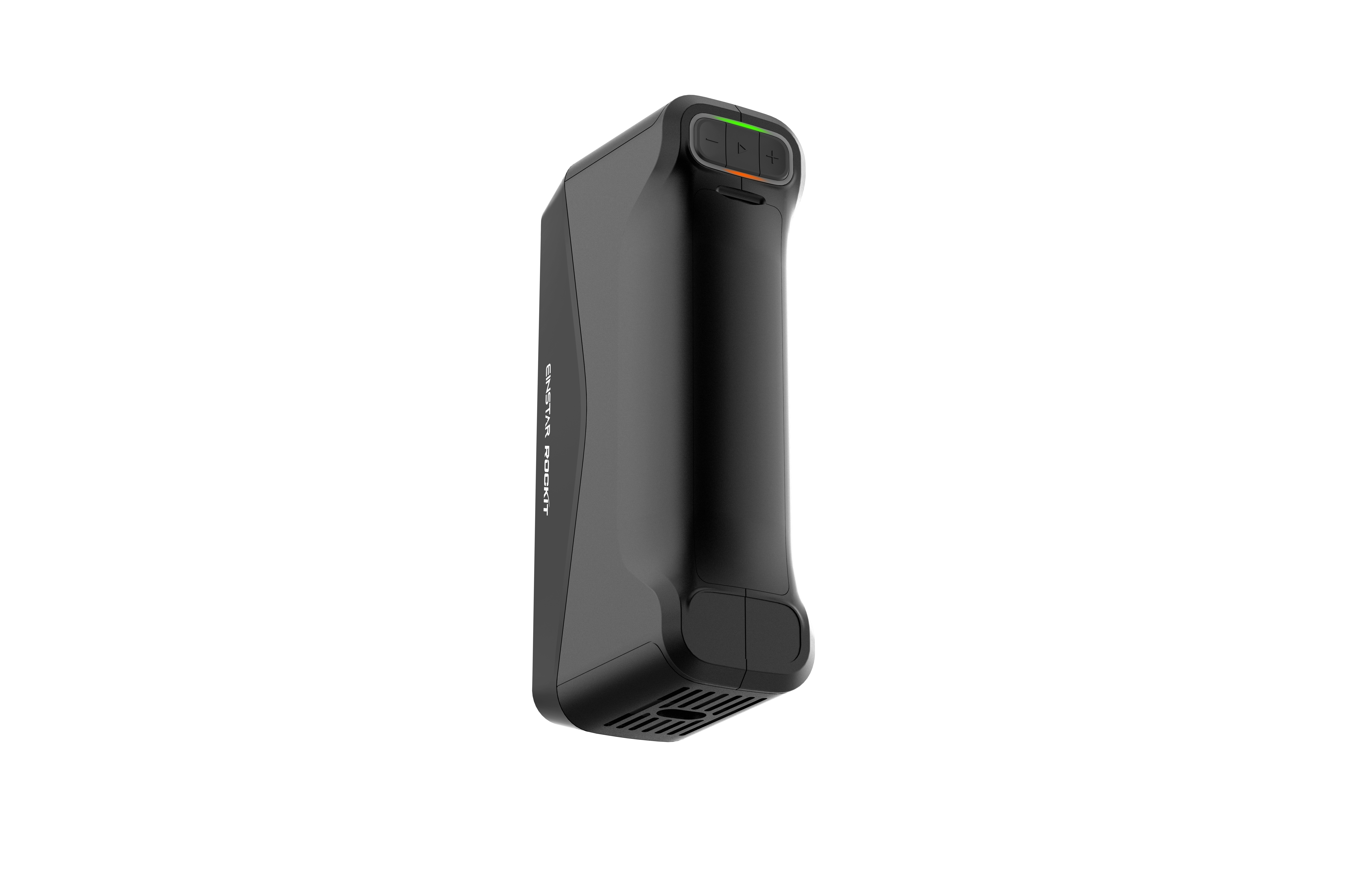

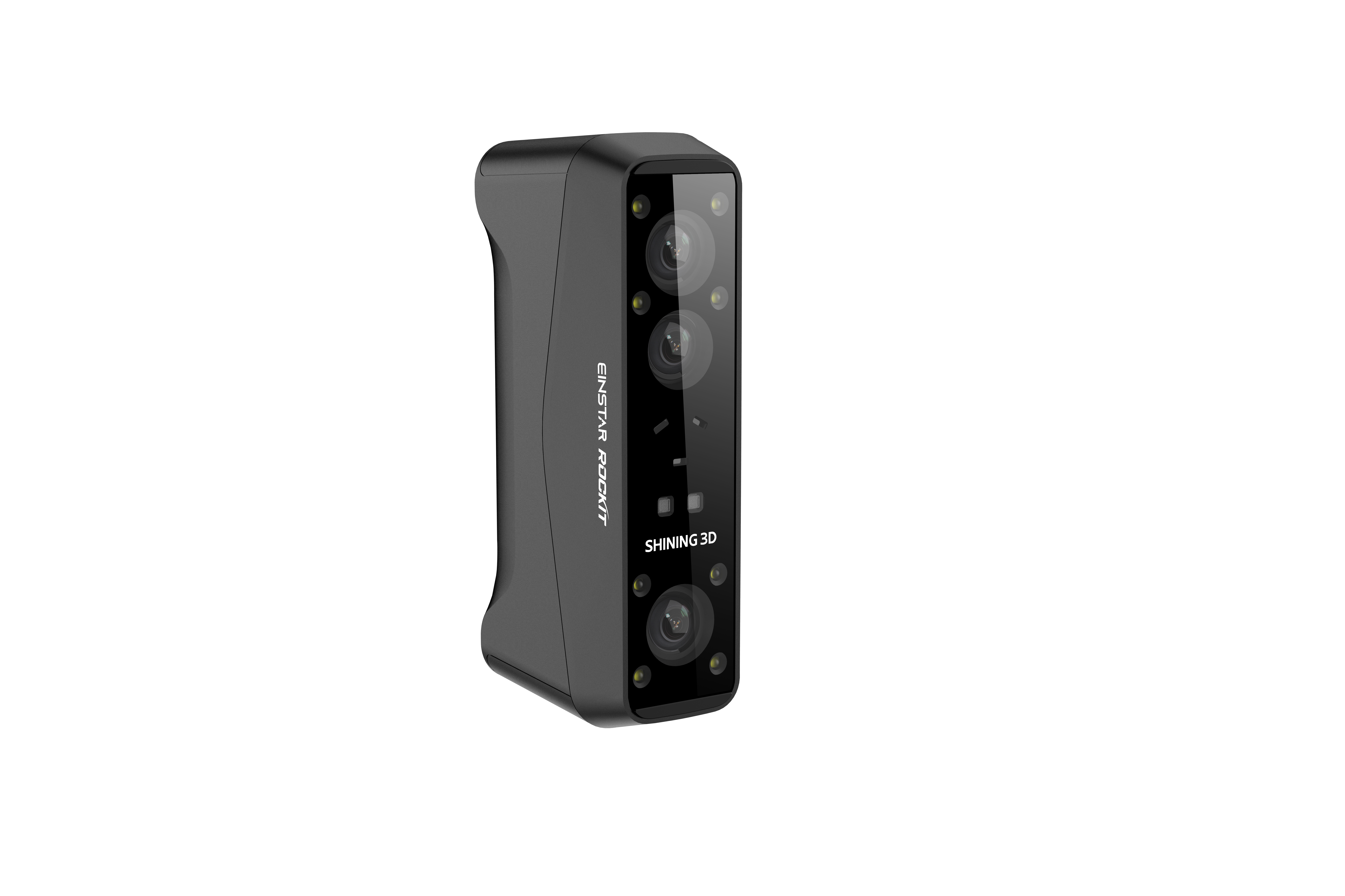

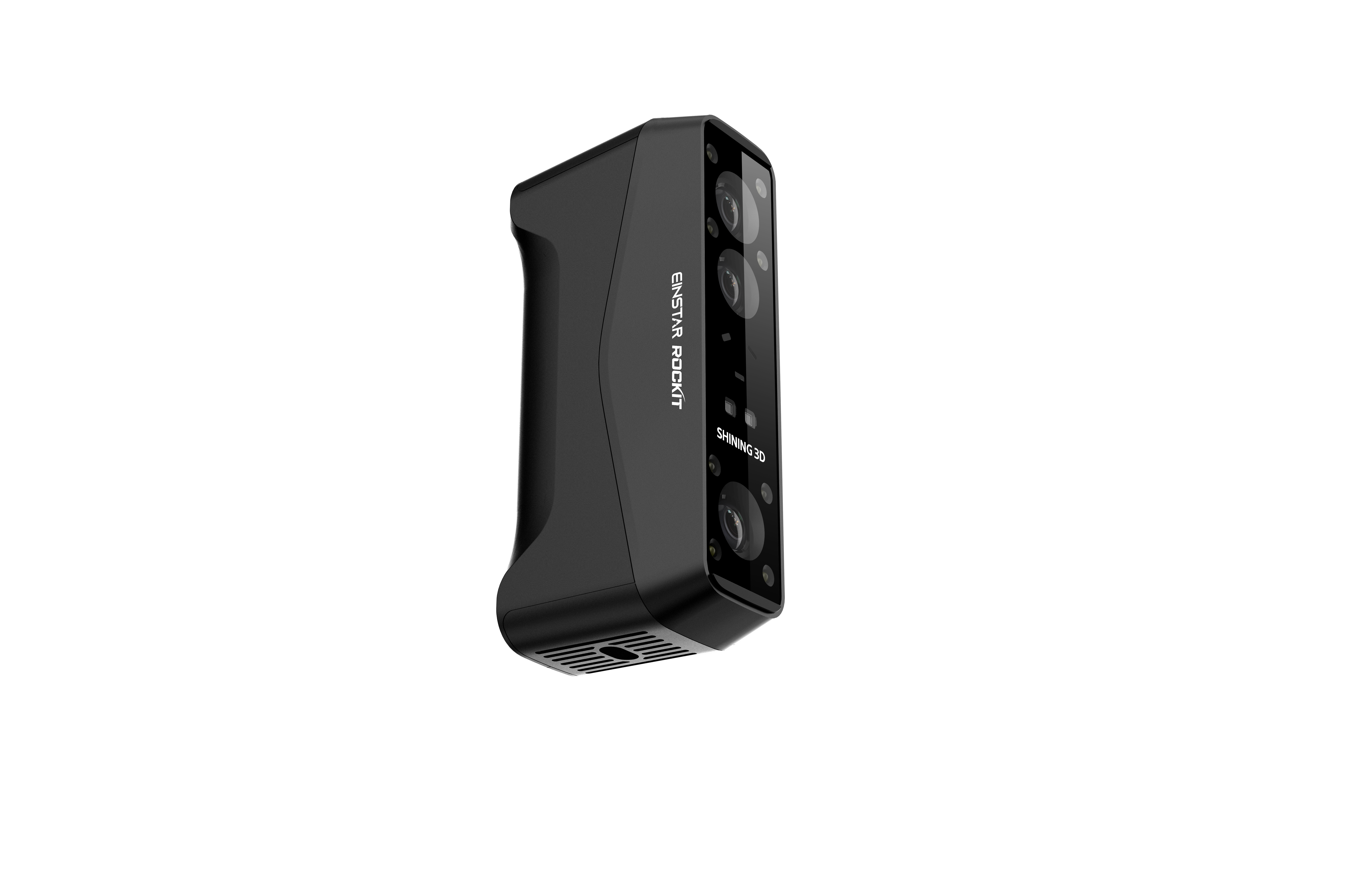

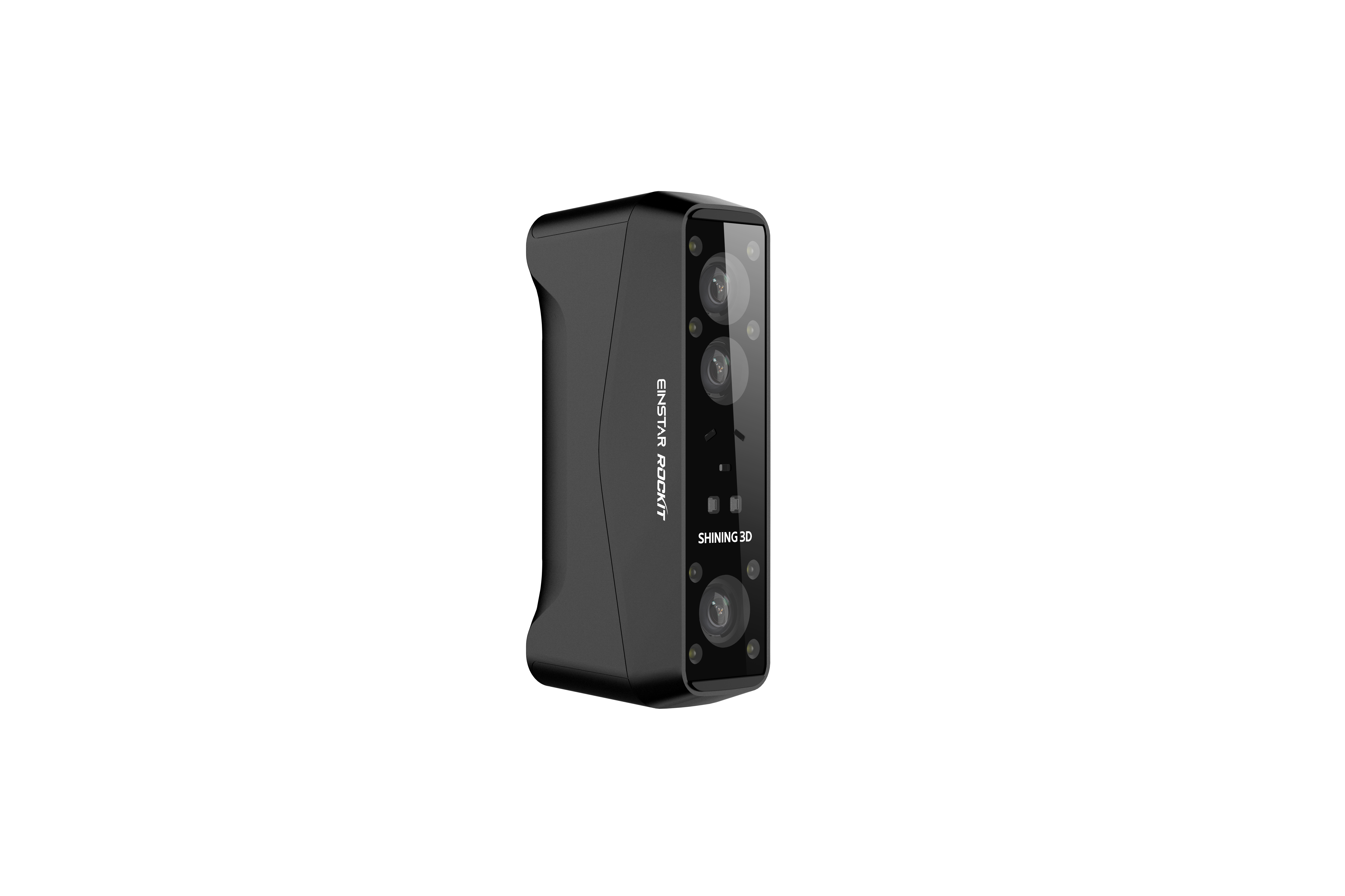

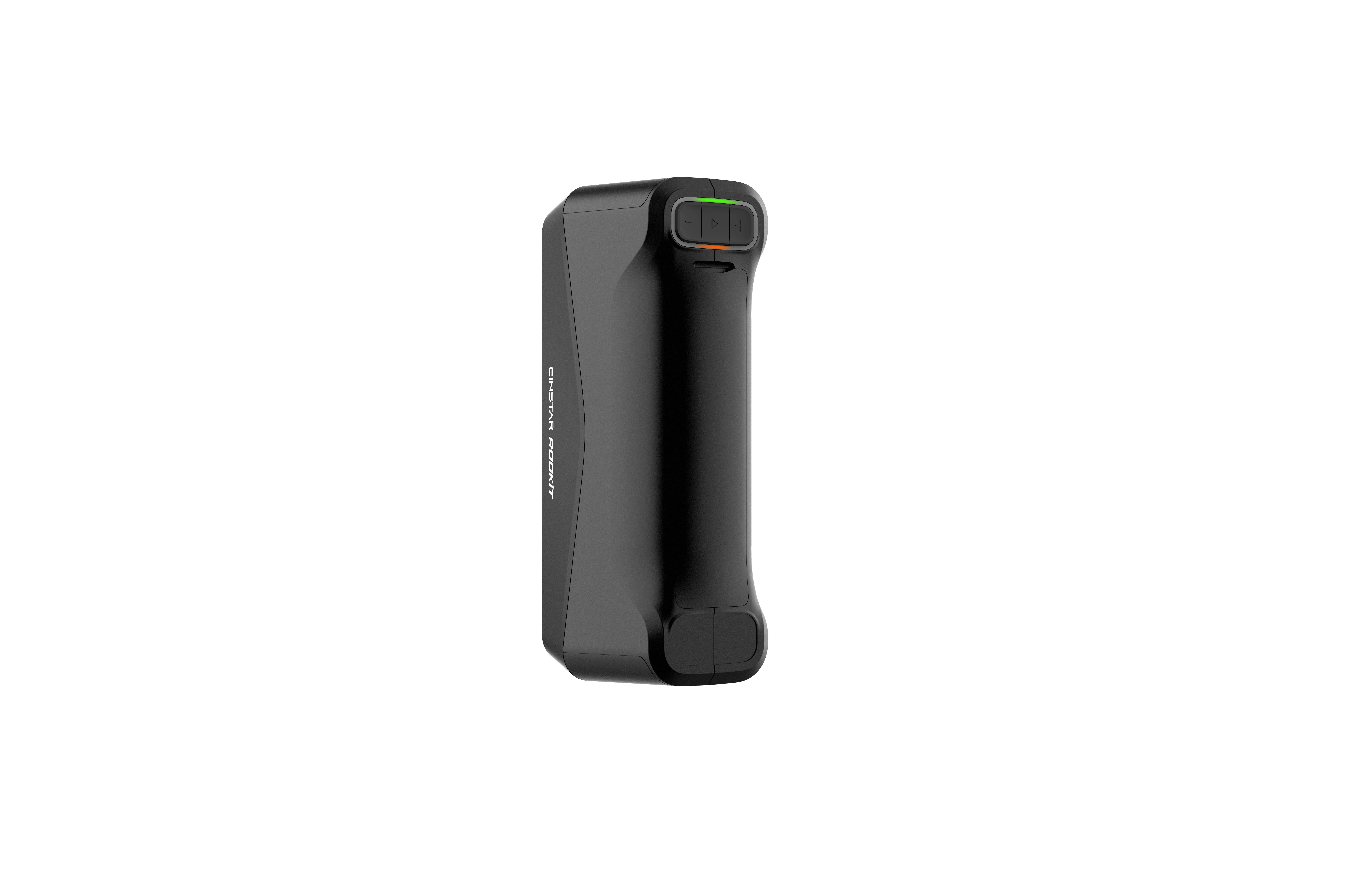

EINSTAR Rockit – Wireless Hybrid 3D Scanner
The EINSTAR Rockit is a compact wireless handheld 3D scanner combining blue laser and infrared VCSEL technologies in a portable industrial workflow. Designed for reverse engineering, industrial inspection, manufacturing, and digital capture applications, it enables flexible high-speed scanning across detailed and medium-sized objects.
Key Features
- Hybrid Blue Laser and Infrared VCSEL Scanning
- Wireless Portable 3D Scanning Workflow
- Dual Scan Modes – Laser HD and IR Rapid
- High-Speed Geometry Capture
- Compact Pocket-Sized Industrial Design
- Designed for Reverse Engineering and Inspection
- Flexible Scanning Across Different Object Sizes
Technical Specifications
| Scanning Technology (HD Mode) 38 Laser Lines (19 + 19 Crossed) + 7 Parallel Lines |
Scanning Technology (Fast Mode) IR VCSEL |
| Resolution (HD) 0.05 – 10 mm |
Resolution (Fast) 0.2 – 10 mm |
| Scan Speed (HD) Up To 2,800,000 Points/s |
Scan Speed (Fast) Up To 4,800,000 Points/s |
| Working Distance (HD) 100 – 600 mm (Crossed) / 100 – 400 mm (Parallel) |
Working Distance (Fast) 160 – 1400 mm |
| Maximum Field of View (HD) 545 × 620 mm |
Maximum Field of View (Fast) 1170 × 1385 mm |
| Minimum Scan Volume (HD) 5 × 5 × 5 mm |
Minimum Scan Volume (Fast) 50 × 50 × 50 mm |
| Frame Rate (HD) Up To 90 fps |
Frame Rate (Fast) Up To 20 fps |
| Camera (3D) 2 MP × 2 |
Texture Camera 5 MP RGB |
| Outdoor Scanning (HD) Up To 110,000 Lux |
Outdoor Scanning (Fast) Up To 70,000 Lux |
| Connection USB Type-C / Wi-Fi 6 |
Battery 5500 mAh (Swappable) |
| Runtime Up To 3 Hours |
Weight 420 g |
| Dimensions 130 × 37 × 61 mm |
Protection IP50 |
| Output Formats STL, OBJ, PLY, 3MF, ASC |
Laser Class Class 2 (Eye-Safe) |
Use Cases
- Reverse Engineering and Product Development
- Industrial Inspection and Quality Control
- Automotive and Mechanical Part Scanning
- Manufacturing and 3D Printing Workflows
What’s In The Box
- 1 × EINSTAR Rockit Scanner
- 1 × Carrying Case
- 1 × Calibration Board
- 1 × Battery (5500 mAh)
- 1 × Power Adapter
- 1 × USB Type-C Cable
- 1 × Marker Set
- Documentation
