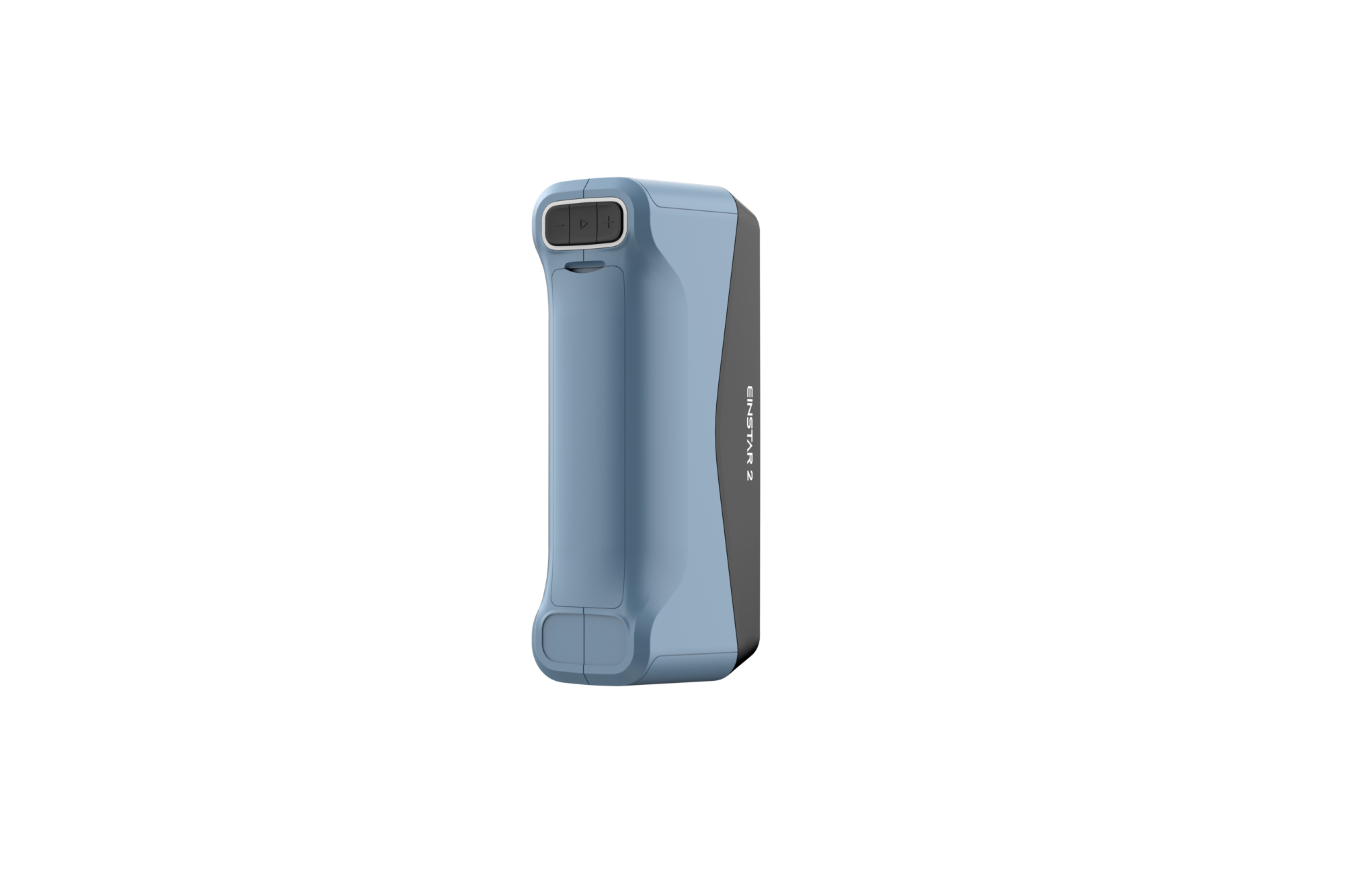

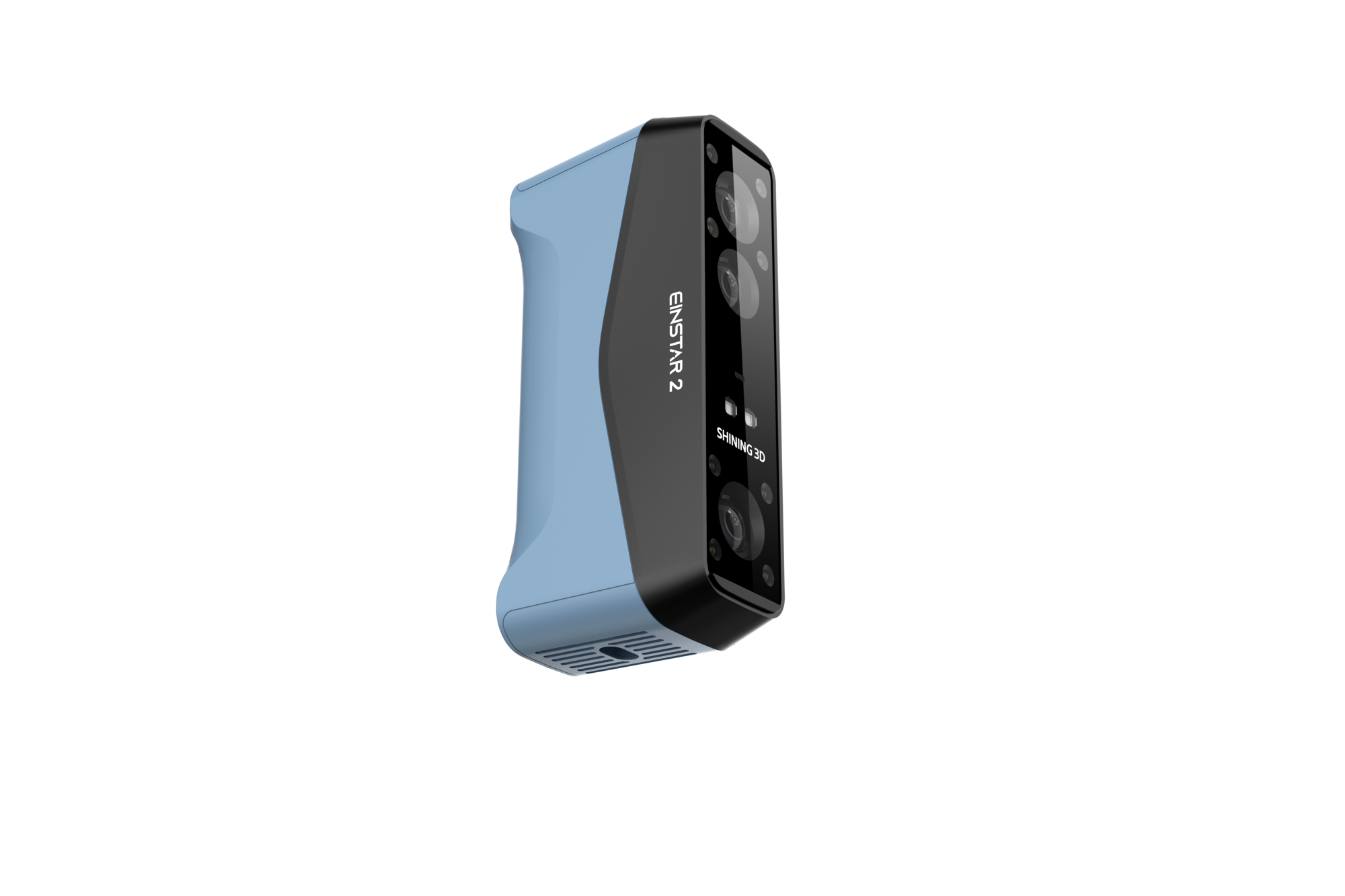

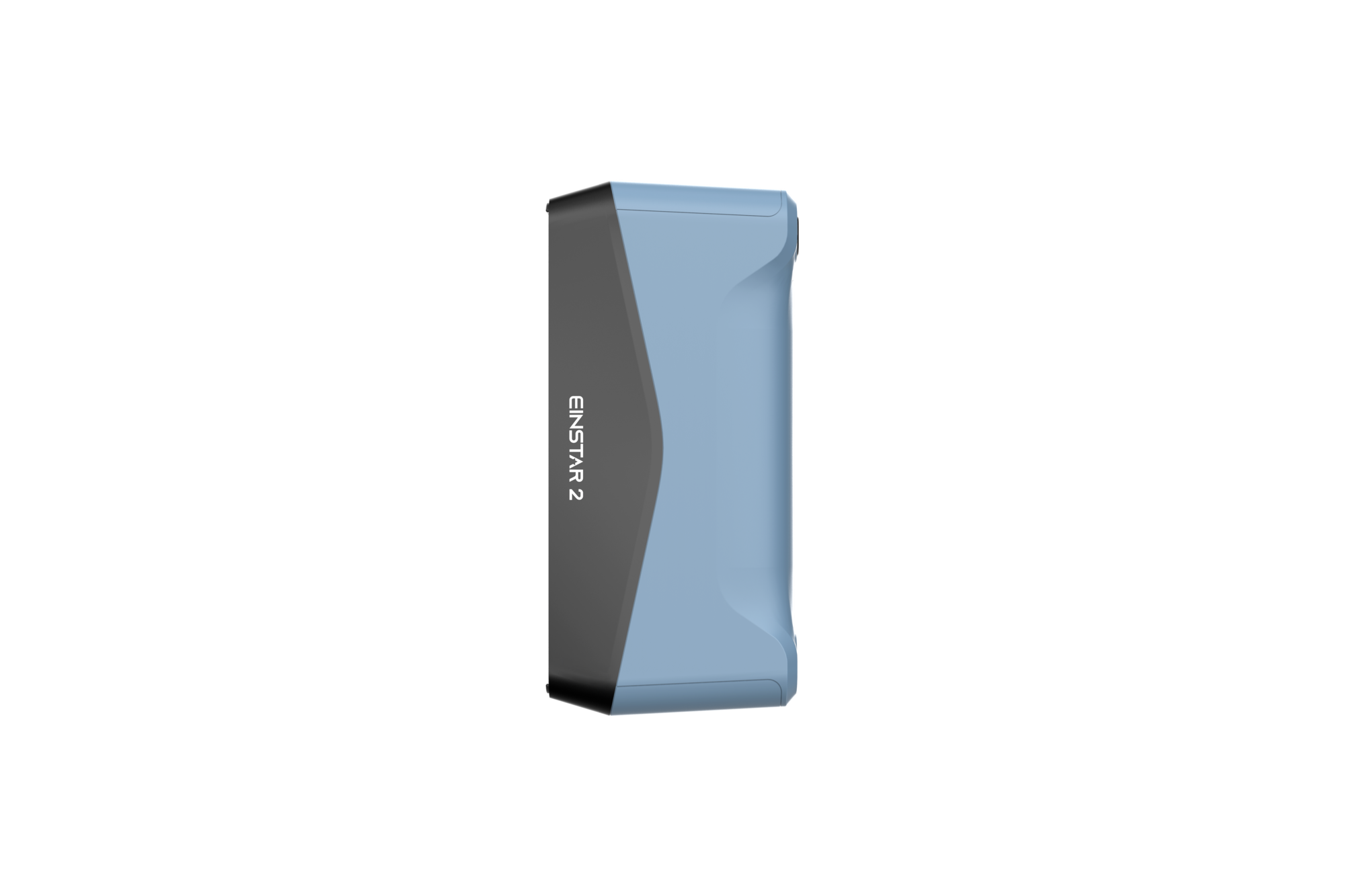

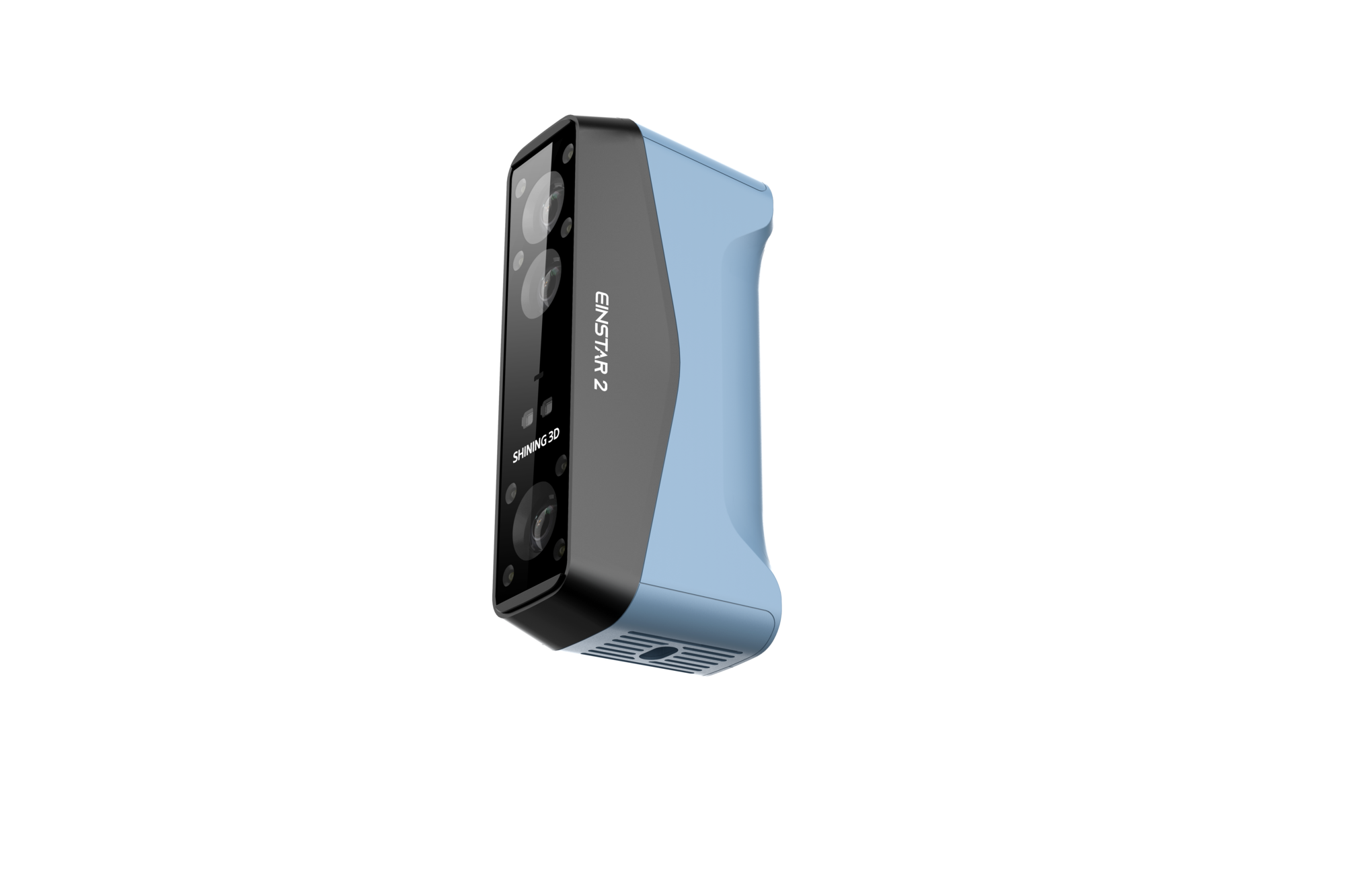

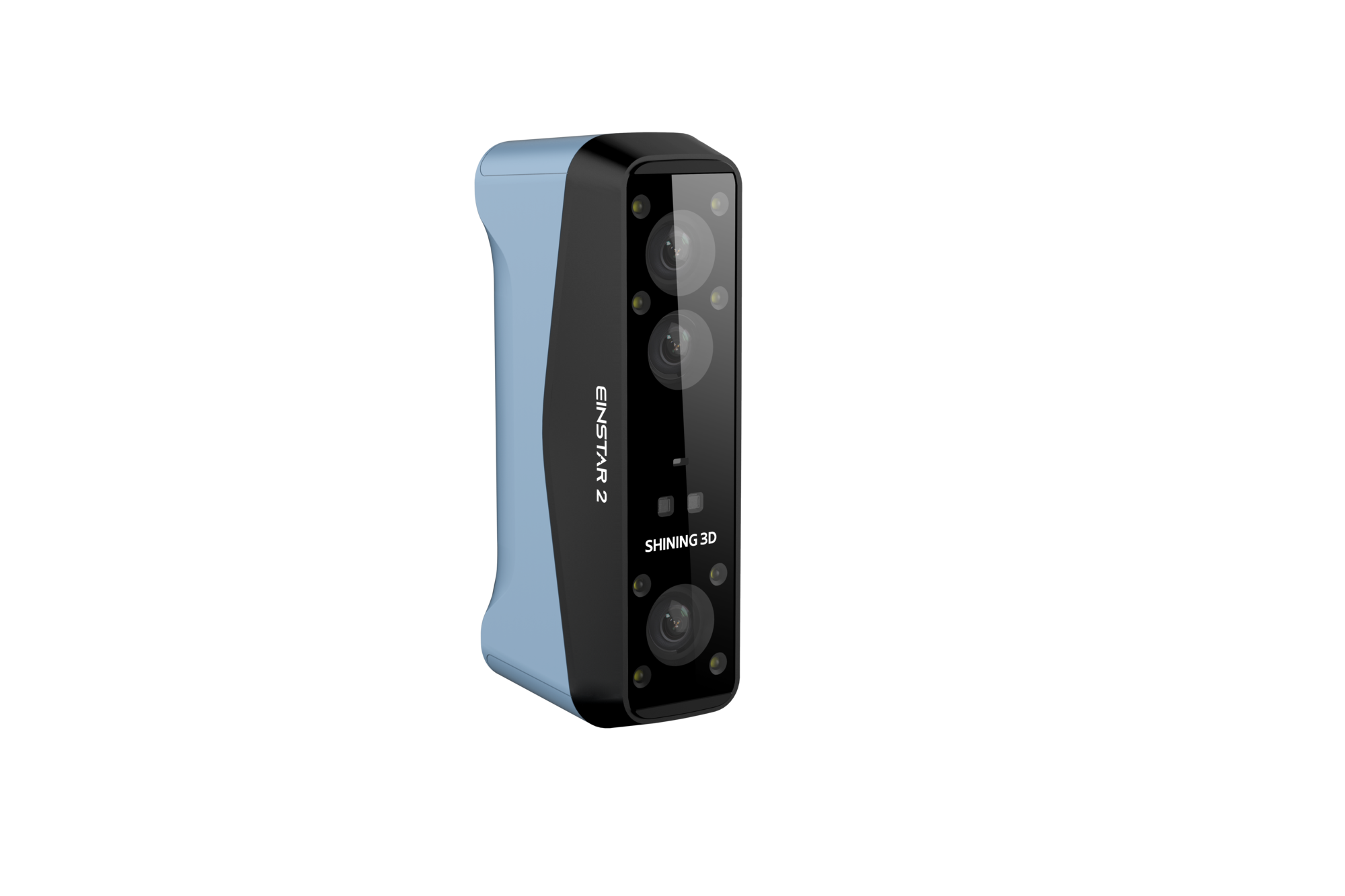

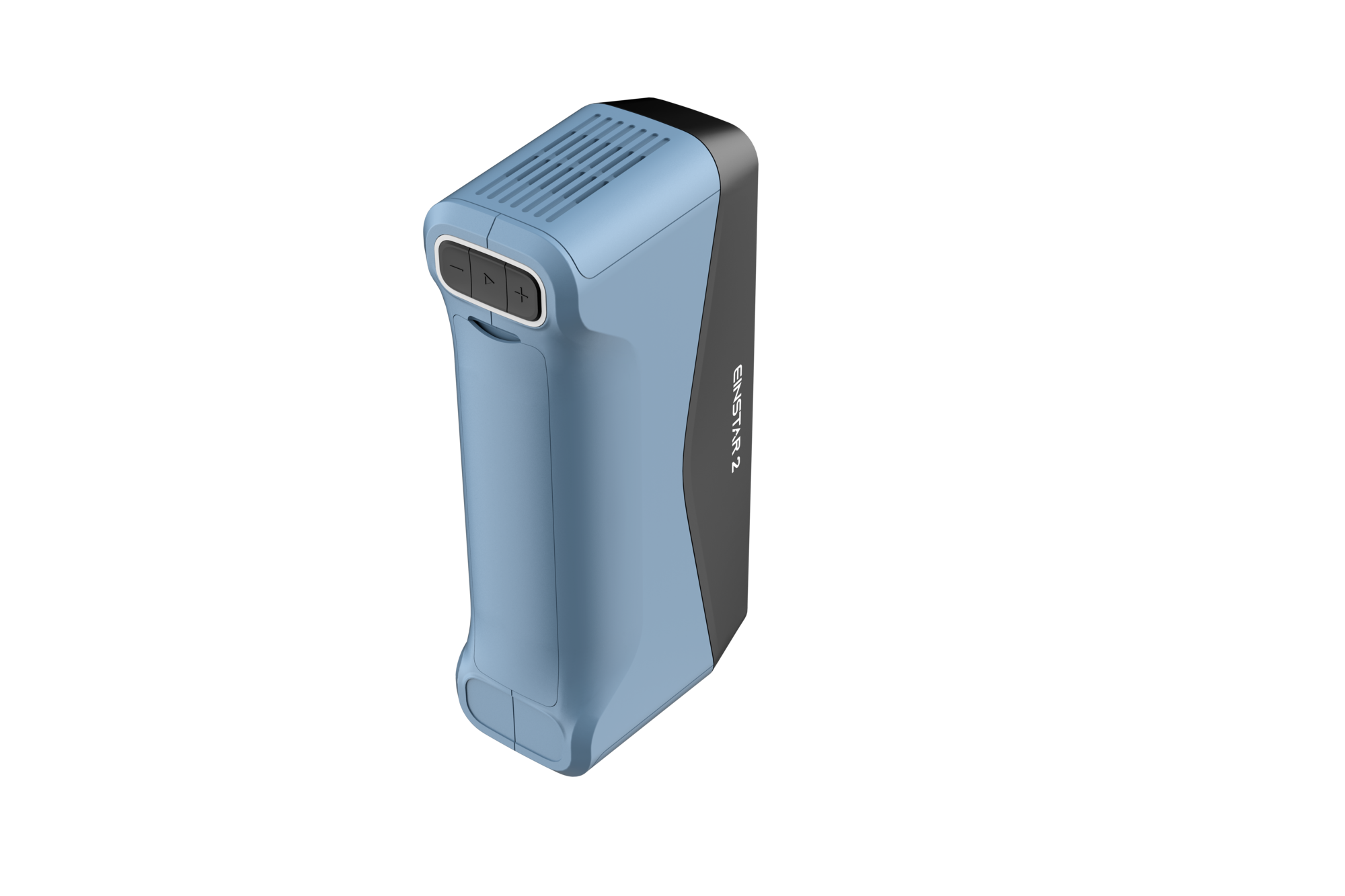

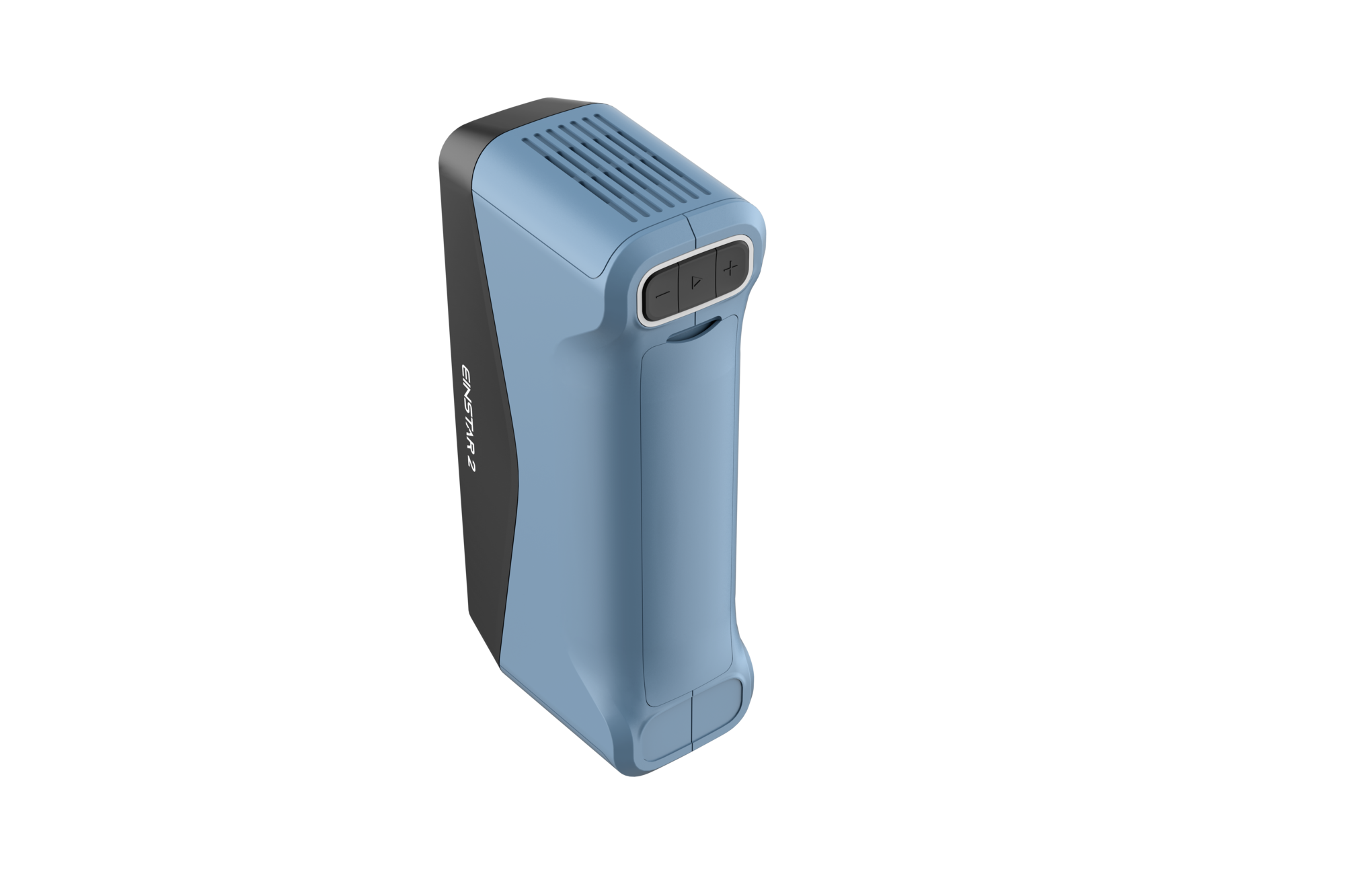

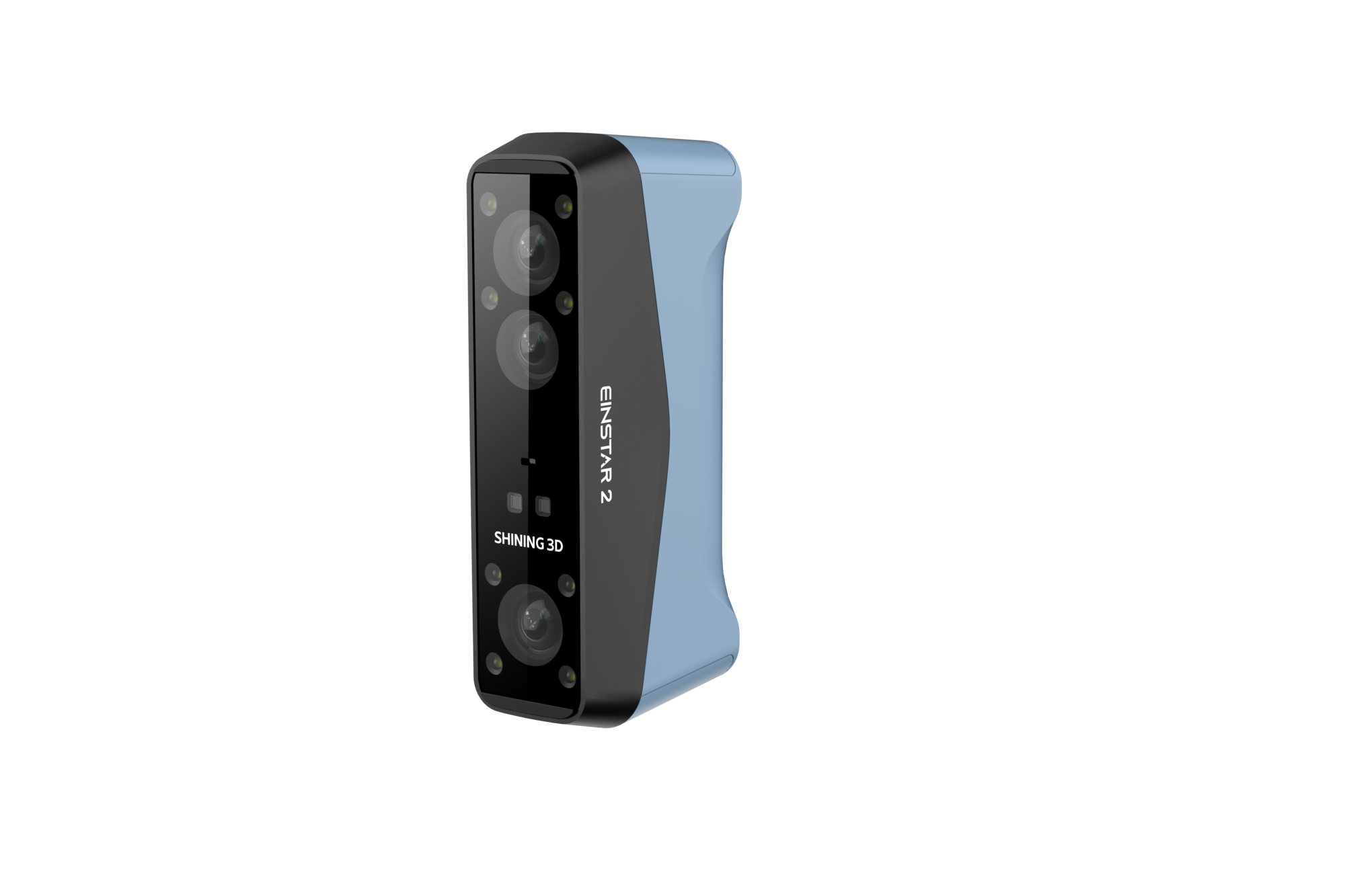

EINSTAR 2 – Wireless Hybrid 3D Scanner
The EINSTAR 2 is a professional wireless handheld 3D scanner combining blue laser and infrared VCSEL technologies in a compact portable workflow. Designed for industrial inspection, reverse engineering, product development, and digital capture applications, it enables flexible high-detail scanning across a wide range of object sizes.
Key Features
- Hybrid Blue Laser and Infrared VCSEL Scanning
- Wireless Handheld 3D Scanning Workflow
- Dual Scan Modes – Laser HD and IR Rapid
- High-Speed Geometry Capture
- Portable Lightweight Industrial Design
- Designed for Reverse Engineering and Inspection
- Supports Small to Large Object Scanning
Technical Specifications
| Scanning Technology (HD Mode) 17 Blue Laser Parallel Lines |
Scanning Technology (Fast Mode) IR VCSEL |
| Resolution (HD) 0.05 – 10 mm |
Resolution (Fast) 0.2 – 10 mm |
| Scan Speed (HD) Up To 2,500,000 Points/s |
Scan Speed (Fast) Up To 4,800,000 Points/s |
| Working Distance (HD) 100 – 600 mm |
Working Distance (Fast) 160 – 1400 mm |
| Maximum Field of View (HD) 490 × 580 mm |
Maximum Field of View (Fast) 1170 × 1385 mm |
| Minimum Scan Volume (HD) 10 × 10 × 10 mm |
Minimum Scan Volume (Fast) 50 × 50 × 50 mm |
| Frame Rate (HD) Up To 90 fps |
Frame Rate (Fast) Up To 20 fps |
| Camera 2 × 2 MP |
Texture Camera 2.3 MP |
| Outdoor Scanning (HD) Up To 110,000 Lux |
Outdoor Scanning (Fast) Up To 70,000 Lux |
| Connection USB Type-C / Wi-Fi 6 |
Battery 5500 mAh (Swappable) |
| Runtime Up To 3 Hours |
Weight 420 g |
| Dimensions 130 × 37 × 61 mm |
Protection IP50 |
| Output Formats STL, OBJ, PLY, 3MF, ASC |
Supported OS Windows 11 (64-Bit) |
Use Cases
- Reverse Engineering and Product Development
- Industrial Inspection and Quality Control
- Automotive and Mechanical Part Scanning
- 3D Printing and Manufacturing Workflows
What’s In The Box
- 1 × EINSTAR 2 Scanner
- 1 × Carrying Case
- 1 × Calibration Board
- 1 × Battery (5500 mAh)
- 1 × Power Adapter
- 1 × USB Type-C Cable
- 1 × Marker Set
- Documentation
