Description
Core‑XY Large‑Format Printing with Speed & Farm Control

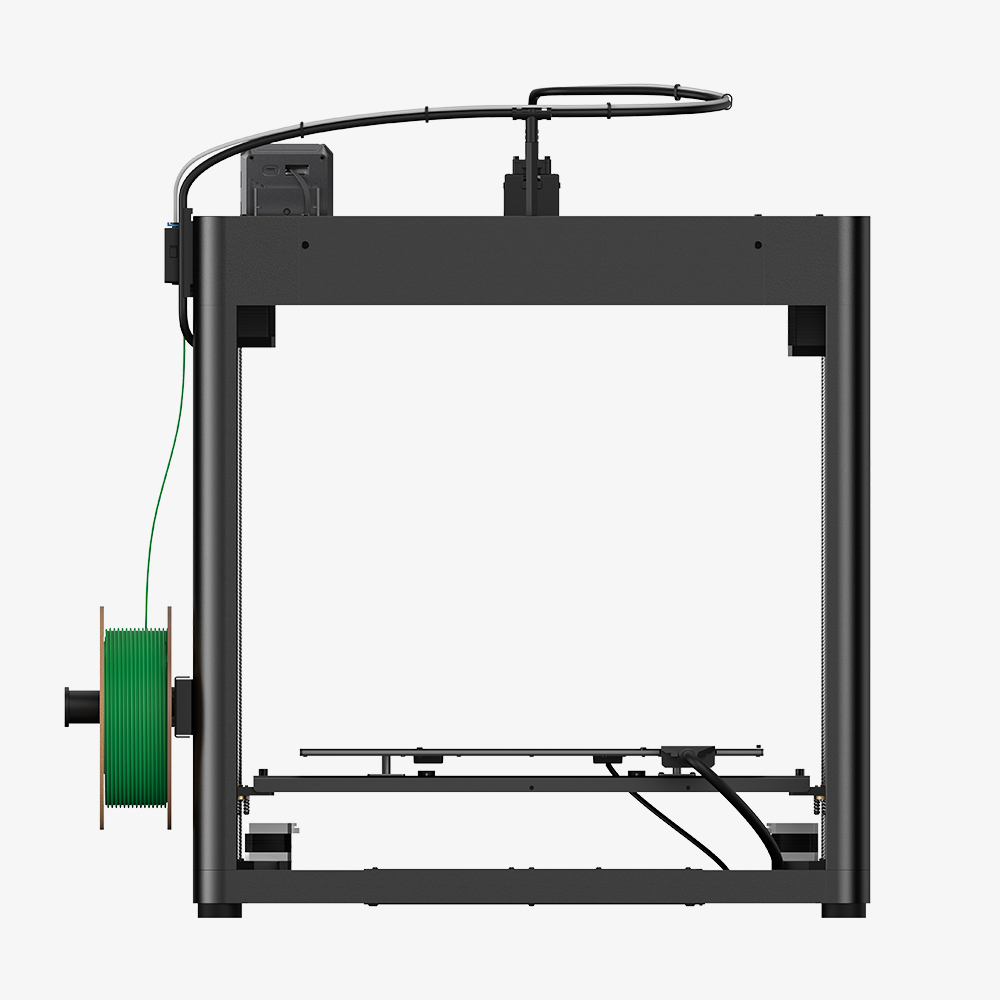

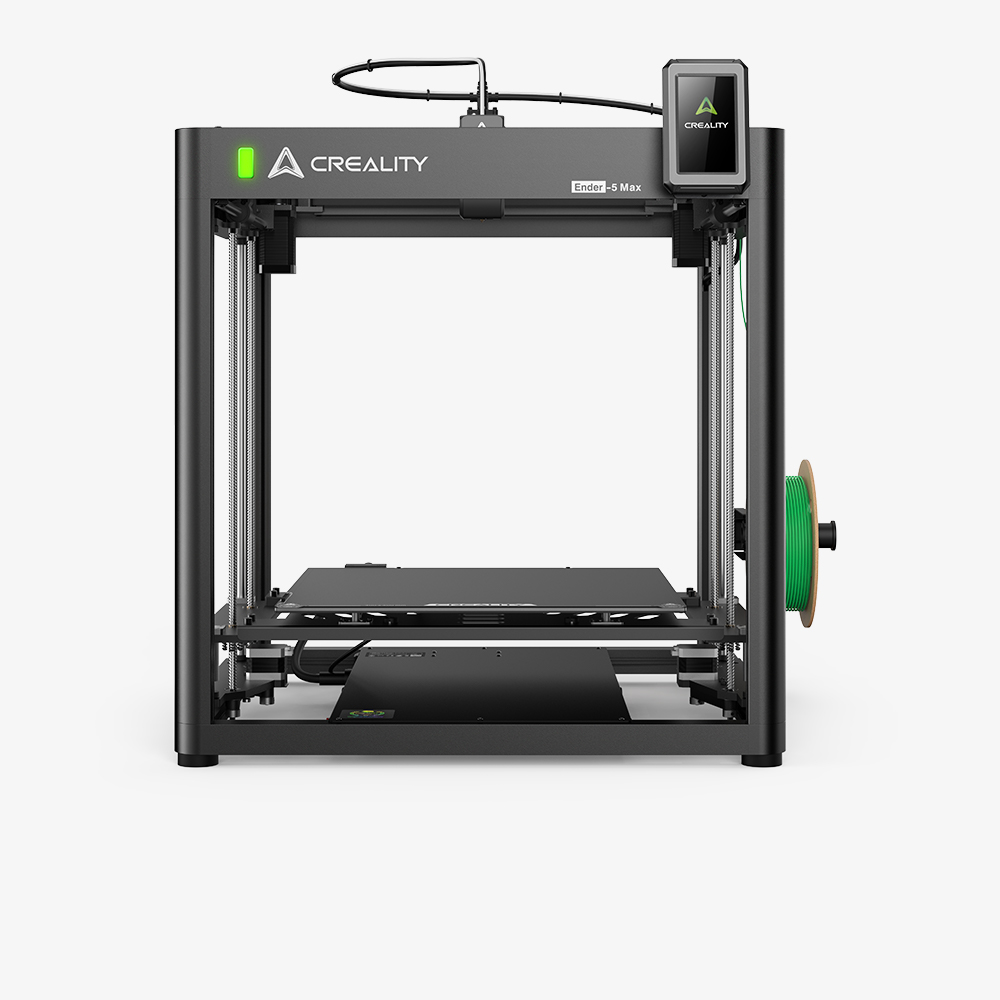

The Creality Ender‑5 Max is designed for professionals and print farms seeking fast, precise, large‑format Core‑XY printing. With a 400 × 400 × 400 mm build volume, 700 mm/s max speed, LAN/Wi‑Fi network control, and 64‑point auto leveling — it delivers efficiency, scale, and reliability.
Key Features:
- 400 × 400 × 400 mm build volume
- Max print speed ≤ 700 mm/s, acceleration ≤ 20,000 mm/s²
- 64‑point auto leveling system
- All‑metal direct‑drive extruder compatible with flexible/composite filaments
- LAN & Wi‑Fi multi‑device management (print farm ready)
- Power-loss recovery & filament runout sensor
- 4.3″ color touchscreen with preview & PID tuning
Technical Specifications:
| Printing Technology FDM / Core‑XY |
Build Volume 400 × 400 × 400 mm |
| Product Dimensions 649 × 721 × 850 mm |
Package Dimensions 732 × 679 × 410 mm |
| Net Weight ≤ 25.9 kg |
Gross Weight ≤ 31.9 kg |
| Printing Speed ≤ 700 mm/s |
Acceleration ≤ 20,000 mm/s² |
| Printing Accuracy 100 ± 0.1 mm |
Layer Height 0.05–0.30 mm |
| Extruder Type All‑metal direct‑drive extruder |
Filament Diameter 1.75 mm |
| Nozzle Type Standard brass |
Nozzle Diameter 0.40 mm (0.6/0.8 mm optional) |
| Nozzle Temperature ≤ 300 °C |
Heatbed Temperature ≤ 100 °C |
| Chamber Temperature N/A |
Build Plate Epoxy flexible magnetic spring‑steel plate |
| Leveling Mode 64‑point auto leveling |
Motor System Servo‑step motors (X, Y, dual Z, E) |
| Rated Voltage 100–240 VAC |
Rated Power ≈ 1000 W heatbed / ~355 W PSU |
| Power Loss Recovery Yes |
Display Screen 4.3″ color touchscreen |
| File Transfer USB drive / LAN / Wi‑Fi (2.4/5 GHz) |
File Storage N/A |
| Wi‑Fi Yes |
RFID Sensor in Printer No |
| Auto Filament Relay No |
Filament Tangle Detection No |
| Air Purifier No |
Input Shaping N/A |
| Lighting Kit No |
Active Bed Tilt Calibration No |
| Active Belt Tensioning No |
Active Chamber Heater No |
| RFID‑tagged Filaments No |
Printable File Format STL, OBJ, AMF |
| CFS Compatibility No |
Number of CFS Extensions 0 |
| Slicing Software Creality Print 6.0 or newer |
UI Languages English, Spanish, German, French, Italian, Portuguese, Russian, Turkish, Japanese, Korean, Chinese |
| Creality Warranty Yes (1‑year limited) |
— — |
What’s In The Box:
- Creality Ender‑5 Max 3D Printer
- Power cable, USB cable
- Tools kit (spanner, scraper, nozzle cleaner)
- SD card with test files
- User manual
Filament Compatibility:
Supports: PLA, PETG, ABS, TPU (with optional enclosure), ASA, Hyper PLA
Use Cases:
- Large-format prototypes and cosplay parts
- Print-farm deployment with networked control
- Functional prints with composite or flexible filaments
- Educational labs and industrial-grade batch production
